Infills elements for plastic windows

Properties

Product description

Surfaces	Hard PVC, white (Veka, Kömmerling, Internorm) Decorative foil (various colours available)
Support panels	Hard PVC, 4 mm HPL, coated with decorative foil, 4 mm
Insulation	PUR rigid foam, 32 kg/m³
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	20 to 57 mm
Formats	Hard PVC: 500 × 95 mm up to 3588 × 1294 mm HPL, decorative foil: 500 × 95 mm up to 3038 × 1294 mm

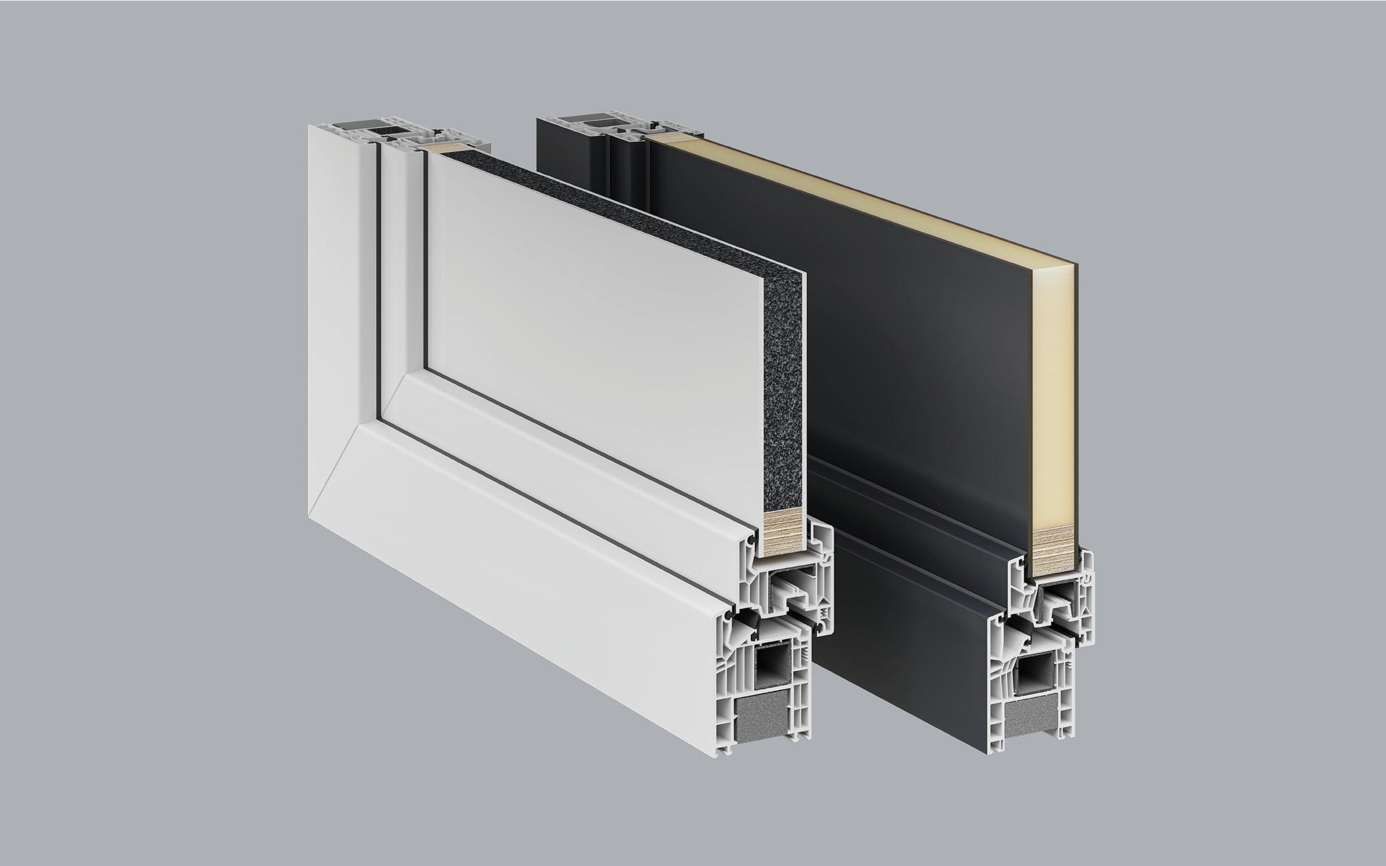

The Frinorm infills are especially suitable for use as a glass substitute in plastic windows. They are available in hard PVC in different shades of white (Veka, Kömmerling or Internorm) or HPL with decorative foil (various colours available). PUR rigid foam, 32 kg/m³, is used as standard for thermal insulation. Other types of thermal insulation, such as expanded polystyrene rigid foam with graphite additive (EPS lambda) or glass wool, are also available. The infills are fabricated with a circumferential spruce edge band. Special edge bands are inset according to your requirements.

Downloads

[{"filename":"abf074374d21691bebb15d0e5a4c4e17.pdf","name":"Product description"},{"filename":"c5507d661450ad42e586fa8c2f75904c.pdf","name":"Technical details"},{"filename":"a76589c7f7bdcb613a4eb3f27715ebb4.pdf","name":"Physical material properties of the applied materials"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
