Infills elements for wooden and wood-metal windows

Properties

Product description

Surfaces	Untreated, primer foil, real wood veneer
Support panels	Birch plywood, class 3, E1, FSC, 6.5 mm Birch plywood, white primer foil, class 3, E1, FSC, 8 mm
Insulation	PUR rigid foam, 32 kg/m³
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	23 to 59 mm
Formats	500 × 95 to 2988 × 1294 mm

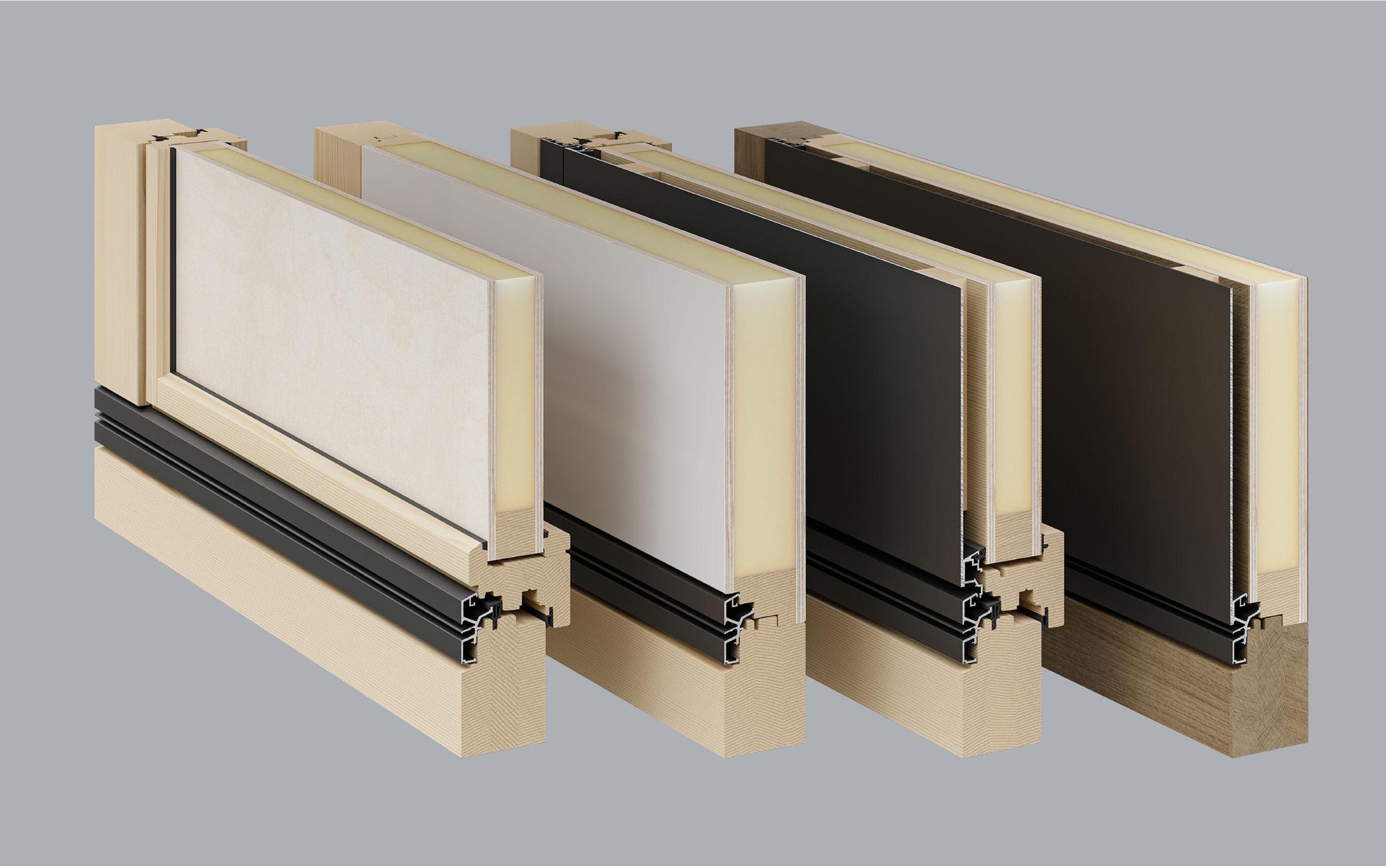

The Frinorm infills are especially suitable for use as a glass substitute in wooden and wood-metal windows. They are available with a plywood panel, class 3, E1, in a raw finish, with priming foil, or with real wood veneer in any wood type. PUR rigid foam, 32 kg/m³, is generally used for thermal insulation. Other types of thermal insulation glass wool or cork, are also available. The infills are fabricated with a circumferential plywood edge band. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"0d24062c6c23d41fb279b3cd6ab32fa7.pdf","name":"Product description"},{"filename":"12bb3273fcb356ee5dac328f18912cf4.pdf","name":"Technical details"},{"filename":"72612f28bed0c7d583c3caab223dce37.pdf","name":"Physical material properties of the applied materials"},{"filename":"88d592d9386151b24ef83f91e0c1a436.pdf","name":"Test report, 28 dB, SPE 6.5"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
