Iso panel

Properties

Application

The Frinorm Iso panel is suited for installation on ceilings and walls in residential rooms in new and converted buildings as well as in old-building renovation. It can be applied in single and multi-family houses as well as in commercial and public buildings.

Downloads

[{"filename":"a5902909e3042bd7e57d238425b4083e.pdf","name":"Product description"},{"filename":"362e3417a3b4b1fb8b1c6ecc26c7c6cf.pdf","name":"Technical details"},{"filename":"6930f04b1c94ef496c17f5e1c81f6f25.pdf","name":"Physical material properties of the applied materials"}]

Services

Properties

Thermal insulation and cladding in one step
Excellent thermal insulation values of up to 0.45 W/m²K
Thermal insulation with expanded rigid polystyrene foam (EPS)
Real wood veneers in all types of wood
Untreated (sanded or sawn), oiled, lacquered or glazed
With or without shadow join
With or without bevelled edge
Dimensionally stable and non-warping
No thermal bridges, perfect panel joins
Optically attractive and appealing surface
Uncomplicated and fast installation

Product description

Surfaces	Veneer
Cover panel	HDF, 5 mm
Insulation	Expanded rigid polystyrene foam (EPS), 20 kg/m³
Thicknesses	32, 42, 52, 62, 72, 82 mm
Formats	2050 x 190 mm (0.389 m²) or 2770 x 190 mm (0.526 m²)

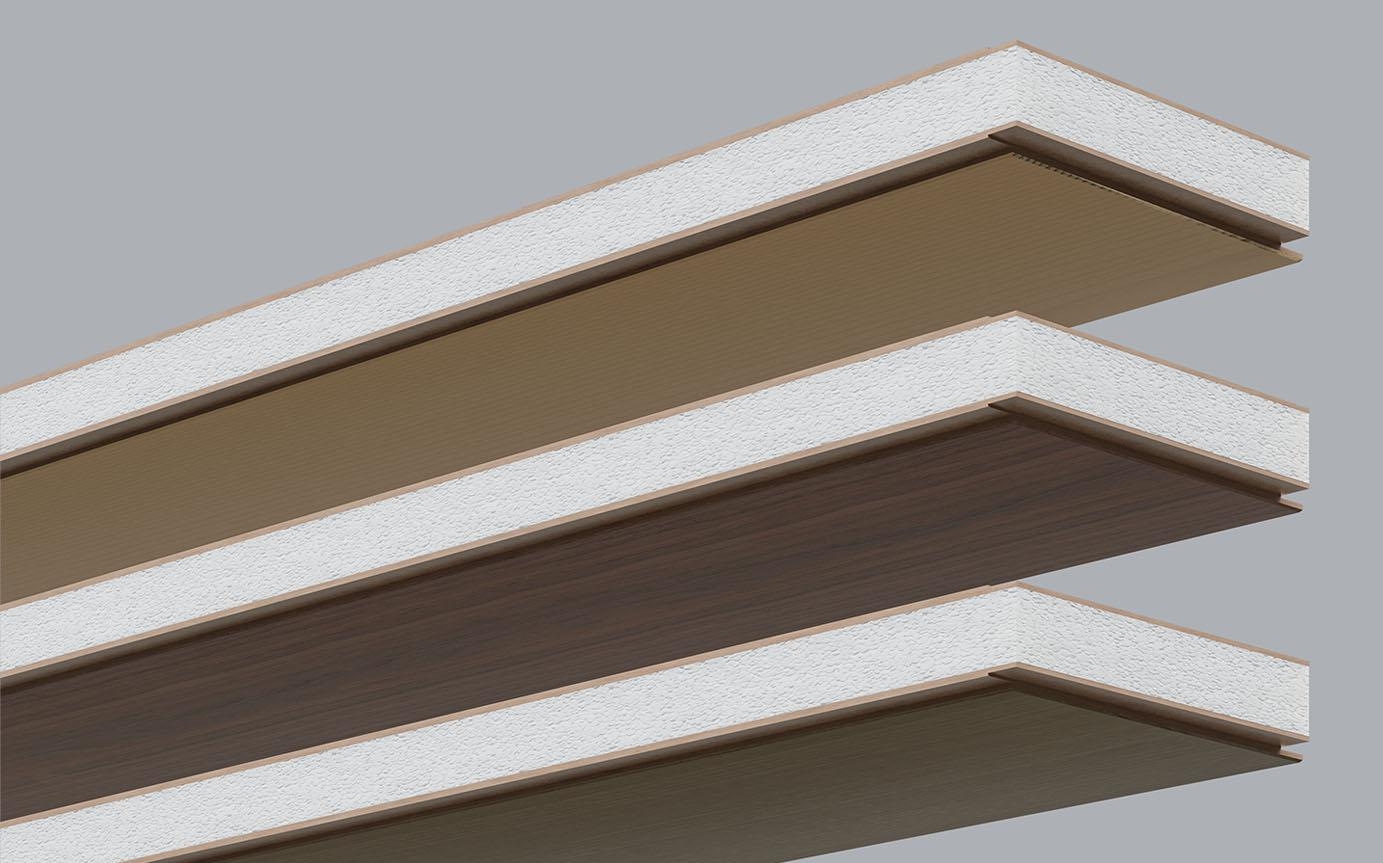

The Frinorm Iso panel not only ensures outstanding thermal insulation but is also an absolutely non-warping, optically very appealing panel. All types of wood are available for selection of the desired real wood veneer surface. A durable and optically unchanged wall and ceiling cladding is guaranteed. The Iso panel is available with two different types of thermal insulation: expanded rigid HDF board on both sides. The real wood veneer surface is available in all types of wood, untreated (sanded or sawn), lacquered, oiled or glazed, as well as with or without shadow join or bevelled edge.
