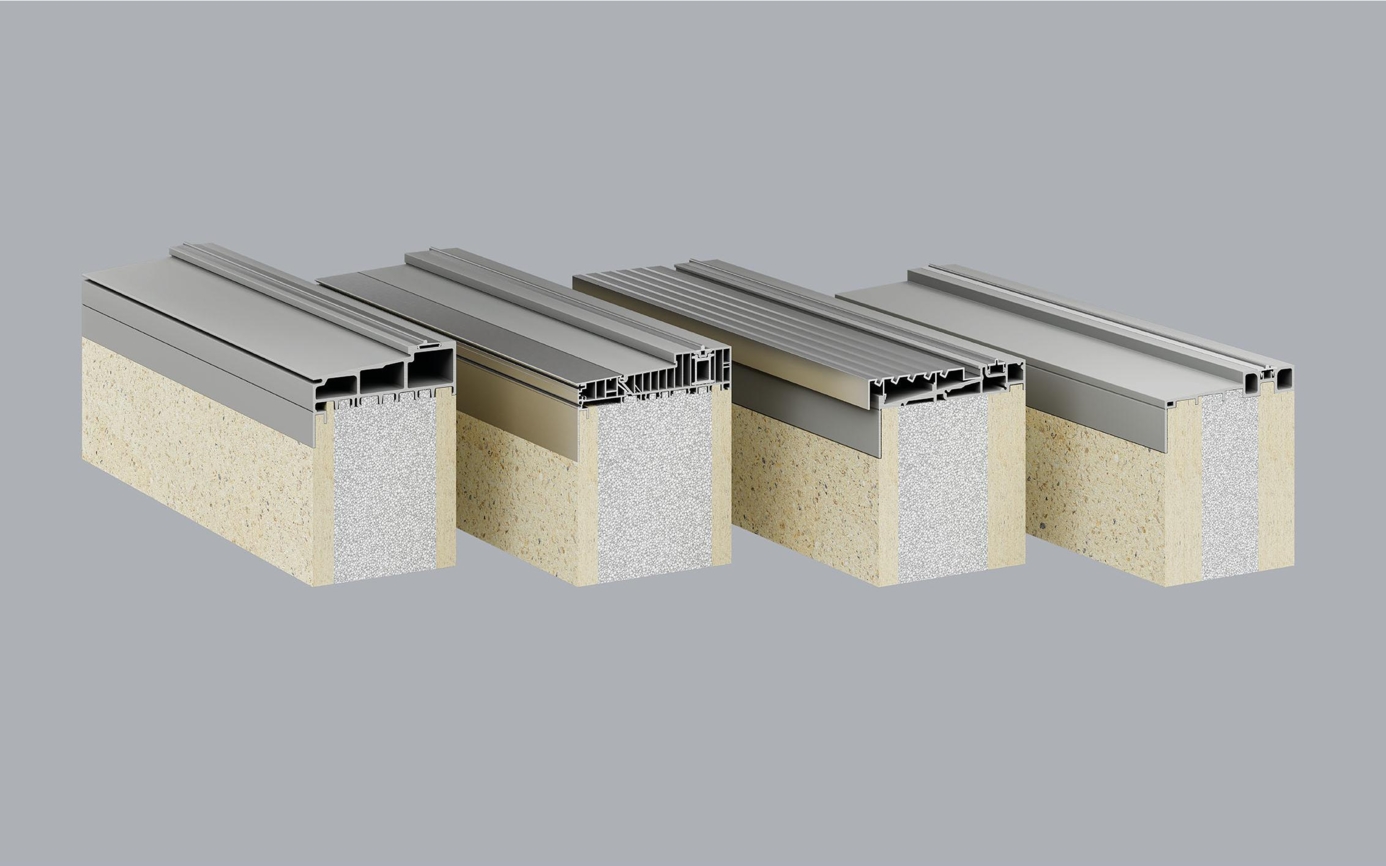

Substructure elements for lifting sliding doors

Properties

Product description

Surfaces	Untreated
Support panels	Recycled polyurethan board, PH, 26 + 26 mm Recycled polyurethan board, PH, 26 + 52 mm Recycled polyurethan board, PH, 52 + 52 mm
Insulation	Intensely expanded polystyrene rigid foam (EPS perimeter), 30 kg/m³
Thicknesses	100 to 220 mm
Formats	500 x 95 to 3588 x 600 mm

The Frinorm moisture- and rot-resistant PH substructure elements for floors are suitable for meeting extensive requirements. The substructure elements comply with the SIA 271 standard "Seals in building construction" and are characterised by good thermal insulation and a high load capacity. The substructure elements are available with polyurethane recycled board, PH, free of CFCs, HCFCs and formaldehyde and also resistant to chemicals. Intensely expanded rigid polystyrene foam (EPS perimeter), 30 kg/m³, is used for thermal insulation.

Downloads

[{"filename":"4953f66e2b8c521fa752a747426413fa.pdf","name":"Product description"},{"filename":"a642475031aa13af9c799b6cd82a63d7.pdf","name":"Technical details"},{"filename":"be4055f66476b3ee275e17cb07998166.pdf","name":"Physical material properties of the applied materials"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
