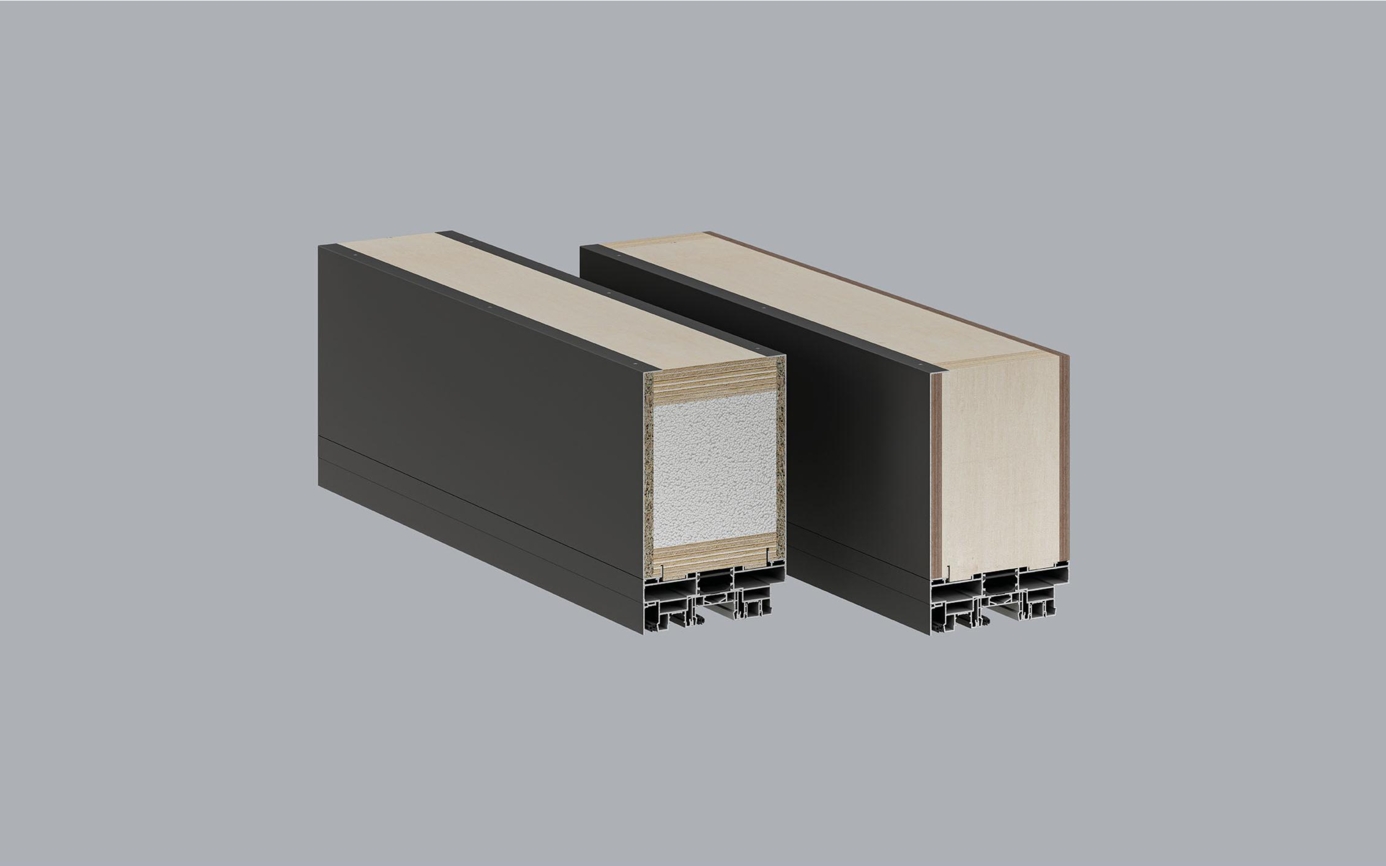

Frame extension elements for aluminium lifting sliding doors

Standard

Properties

Product description

Aluminium shell	Mechanical fastening - due to aluminium‘s high expansion coefficient, the shell is clamped into the guide groove
Surfaces	Support panel, untreated
Support panels	Chipboard P5, E1, PEFC, 10 mm Okoumé plywood, class 3, E1, FSC, 12 mm
Insulation	Expanded polystyrene rigid foam (EPS), 15 kg/m³
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	100 to 220 mm
Formats	Chipboard: 500 × 95 mm to 3588 × 600 mm Plywood: 500 × 95 mm to 3088 × 600 mm

The Frinorm standard frame extension elements for aluminium lifting sliding doors are suitable for meeting high thermal insulation requirements. The aluminium shell is purely mechanically mounted. Due to the high expansion coefficient of the aluminium, the aluminium shell is only clamped into the guide groove. The aluminium shell is available for one or both sides from Frinorm or on site. All RAL and NCS colours are available. The standard frame extension elements are available with chipboard P5, E1, untreated, or plywood panel, class 3, E1. Expanded polystyrene rigid foam (EPS perimeter), 15 kg/m³, is used for thermal insulation. The frame extension elements are fabricated with a circumferential plywood edge band. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"2eb6f398775535c4cf6047127942505f.pdf","name":"Product description"},{"filename":"a7424f436602ccf6c9e54055b4a0fc0d.pdf","name":"Technical details"},{"filename":"36da8081fd2e58eb5000713e417f0791.pdf","name":"Physical material properties of the applied materials"},{"filename":"5b282fc79f5caf5af3b8fd3a7064835d.pdf","name":"Test report, 26 dB, SPAN 10"}]

Services

Properties

Purely mechanical mounting
Due to the high expansion coefficient of the aluminium, the aluminium shell is clamped into the guide groove
Aluminium shell available from Frinorm or on site
Aluminium shell available for one or both sides
All RAL and NCS colours available
Thermal insulation transmission coefficients up to 0,17 W/m²K
Airborne sound insulation values up to 26 dB
Circumferential wooden edge band
Good mounting options
Retain their shape and dimensions
Problem-free surface finishing

Product description

Services – your advantages at a glance

Clear price structure: many services are already included
Custom-made to your specifications
Picked and labelled for delivery
CNC edge machining on all sides to match the frame and threshold profile
Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
Special glued joints available on request fora optimum fastening
Large selection of real wood veneers and material combinations
No waste and no machine, labour or storage costs
