Frame extension elements for aluminium lifting sliding doors

Properties

Product description

Aluminium shell	Mechanical fastening - due to aluminium‘s high expansion coefficient, the shell is clamped into the guide groove
Surfaces	Support panel, untreated
Support panels	Chipboard, P5, E1, PEFC, 10 mm Okoumé plywood, class 3, E1, FSC, 12 mm
Insulation	Glass wool, 20 kg/m³
Sound insulation	Heavy bitumen foil, 5 mm
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	100 to 220 mm
Formats	Chipboard: 500 × 95 mm to 3588 × 600 mm Plywood: 500 × 95 mm to 3088 × 600 mm

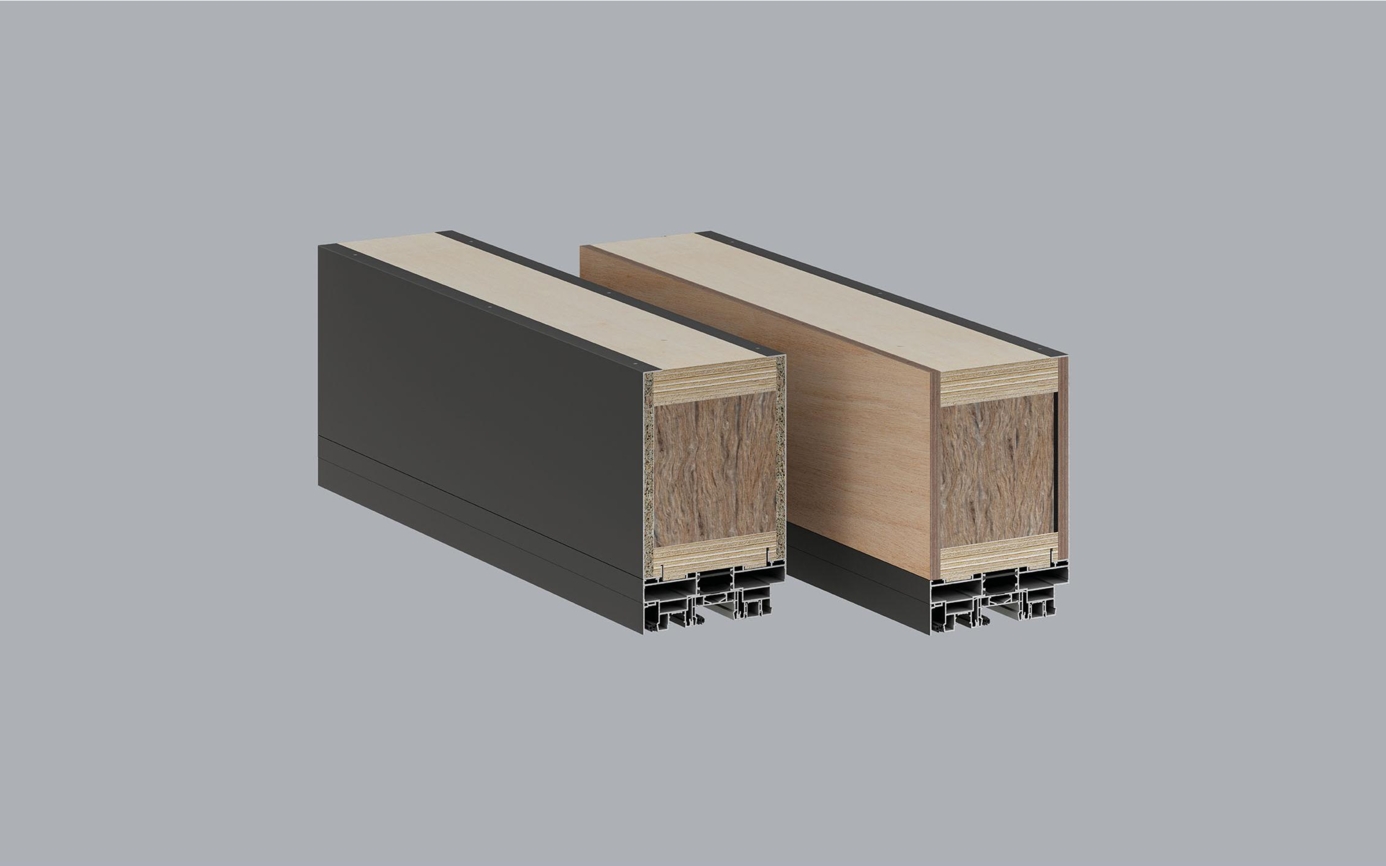

The Frinorm sound-insulated frame extension elements for aluminium lifting sliding doors are especially suitable for meeting high sound insulation and thermal insulation requirements. The aluminium shell is purely mechanically mounted. Due to the high expansion coefficient of the aluminium, the aluminium shell is only clamped into the guide groove. The aluminium shell is available for one or both sides from Frinorm or on site. All RAL and NCS colours are available. The sound-insulated frame extension ele- ments are available with chipboard P5, E1, untreated, or plywood panel, class 3, E1. Depending on the sound insulation requirements, the frame extension elements are fabricated with a heavy bitumen foil. Glass wool, 20 kg/m³, is used for thermal insulation. The frame extension elements are fabricated with a circumferential plywood edge band. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"35d77fa7b8a033f401de277c19278380.pdf","name":"Product description"},{"filename":"81a4ce1c70773e48c3eeb3e041589780.pdf","name":"Technical details"},{"filename":"4babc410b7570e2ef4f1366ac2680ae3.pdf","name":"Physical material properties of the applied materials"},{"filename":"ad7d37be4449ba9c0647423c761371fc.pdf","name":"Test report, 40 dB, SPAN 10"},{"filename":"1b2d2cf843ad00bc7d4f6bcc4b99b5dd.pdf","name":"Test report, 46 dB, SPAN 10"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
