Frame extension elements for plastic lifting sliding doors

Properties

Product description

Surfaces	Hard PVC, white (Veka, Kömmerling, Internorm) Decorative foil (various colours available)
Support panels	Hard PVC, 4 mm HPL, coated with decorative foil, 4 mm
Insulation	Expanded polystyrene rigid foam (EPS), 15 kg/m³
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	100 to 220 mm
Formats	Hard PVC: 500 × 95 mm up to 3588 × 1294 mm HPL, decorative foil: 500 × 95 mm up to 3038 × 1294 mm

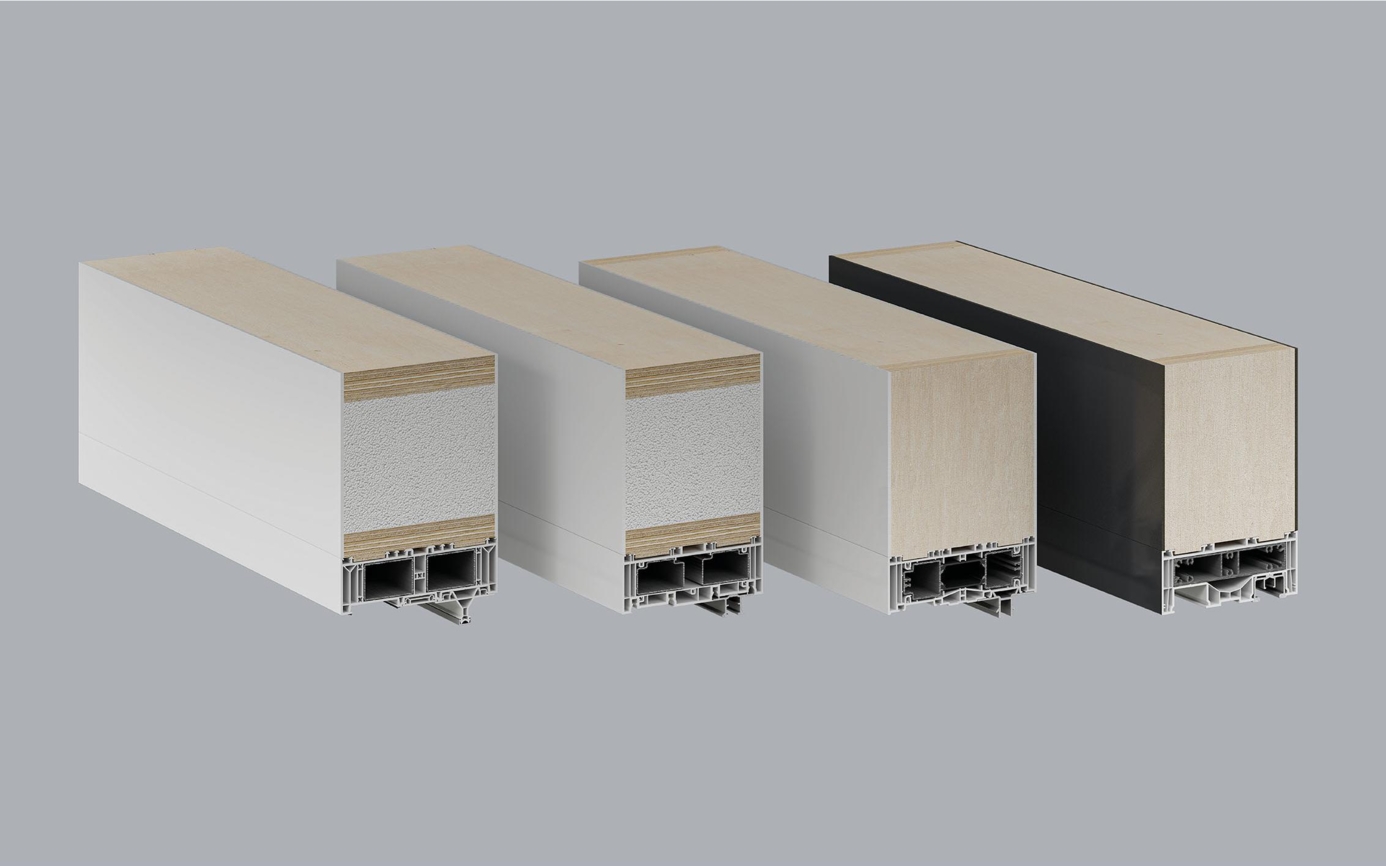

The Frinorm frame extension elements for plastic lifting sliding doors are especially suitable for meeting high thermal insulation requirements. They are available in hard PVC 4 mm in different shades of white (Veka, Kömmerling or Internorm) or HPL with decorative foil (various colours availablers). Expanded polystyrene rigid foam (EPS), 15 kg/m³, is used for thermal insulation. The frame extension elements are fabricated with a circumferential plywood edge band. Special edge bands are inset according to your requirements.

Downloads

[{"filename":"c354bb8a3a6c51f304a2d98138115984.pdf","name":"Product description"},{"filename":"3a344e5613741abe85cece7b06022757.pdf","name":"Technical details"},{"filename":"33714d0bc0e1da6f7f64fb0b3d4cdc27.pdf","name":"Physical material properties of the applied materials"},{"filename":"913fe857629cf227238be87599de7c09.pdf","name":"Test report, 29 dB, HART-PVC 4"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
