Frame extension elements for plastic lifting sliding doors

Sound insulation

Properties

Product description

SurfacesHard PVC, white (Veka, Kömmerling, Internorm)
Decorative foil (various colours available)
Support panelsHard PVC, 4 mm
HPL, coated with decorative foil, 4 mm
InsulationGlass wool, 70 kg/m³
Sound insulationHeavy bitumen foil, 5 mm
Edge bandPoplar plywood, class 2, E1, PEFC
Thicknesses100 to 220 mm
FormatsHard PVC: 500 × 95 mm up to 3588 × 1294 mm
HPL, decorative foil: 500 × 95 mm up to 3038 × 1294 mm

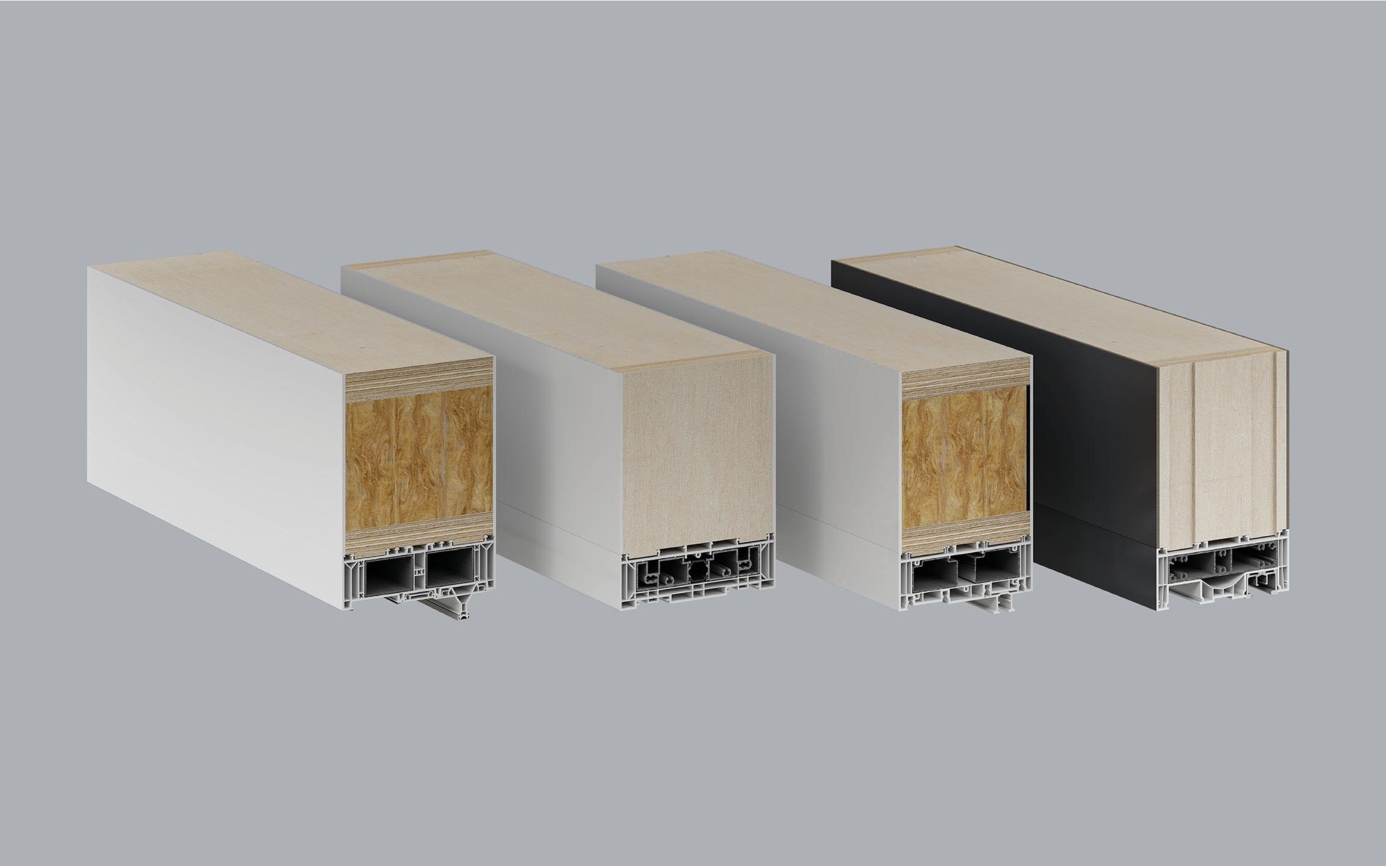

The Frinorm frame extension elements for plastic lifting sliding doors are especially suitable for meeting high thermal insulation requirements. They are available in hard PVC, 4 mm, in different shades of white (Veka, Kömmerling or Internorm) or HPL with decorative foil, 4 mm (all colours). Depending on the sound insulation requirements, the frame extension elements are fabricated with heavy bitumen foil. glass wool, 70 kg/m³, is used for thermal insulation. The frame extension elements are fabricated with a circumferential plywood edge band. Special edge bands are inset according to your requirements.

Downloads

[{"filename":"bcd89b6d2807aa062529b696befa651c.pdf","name":"Product description"},{"filename":"aacba1dc34a133d86dd0ff4e9f06c1c5.pdf","name":"Technical details"},{"filename":"e8b249c966418a91a8b47150c0c4d0de.pdf","name":"Physical material properties of the applied materials"},{"filename":"83e99b1c845d4ee8b6a7114a5ce142ca.pdf","name":"Test report, 41 dB, HART-PVC 4"}]

Services

Properties

  • Moisture-resistant
  • Thermal insulation values up to 0,16 W/m²K
  • Airborne sound insulation values up to 46 dB
  • Circumferential plywood edge band
  • Excellent screw retention qualities
  • Good mounting options
  • Retain their shape and dimensions

Product description

Services – your advantages at a glance

  • Clear price structure: many services are already included
  • Custom-made to your specifications
  • Picked and labelled for delivery
  • CNC edge machining on all sides to match the frame and threshold profile
  • Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
  • Special glued joints available on request fora optimum fastening
  • Large selection of real wood veneers and material combinations
  • No waste and no machine, labour or storage costs
