Frame extension elements for plastic windows

Properties

Product description

Surfaces	Hard PVC, white (Veka, Kömmerling, Internorm) Decorative foil (various colours available)
Support panels	Hard PVC, 4 mm HPL, coated with decorative foil, 4 mm
Insulation	Expanded polystyrene rigid foam with graphite additive (EPS lambda), 25 kg/m³
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	58 to 99 mm
Formats	Hard PVC: 500 × 95 mm up to 3588 × 1294 mm HPL, decorative foil: 500 × 95 mm up to 3038 × 1294 mm

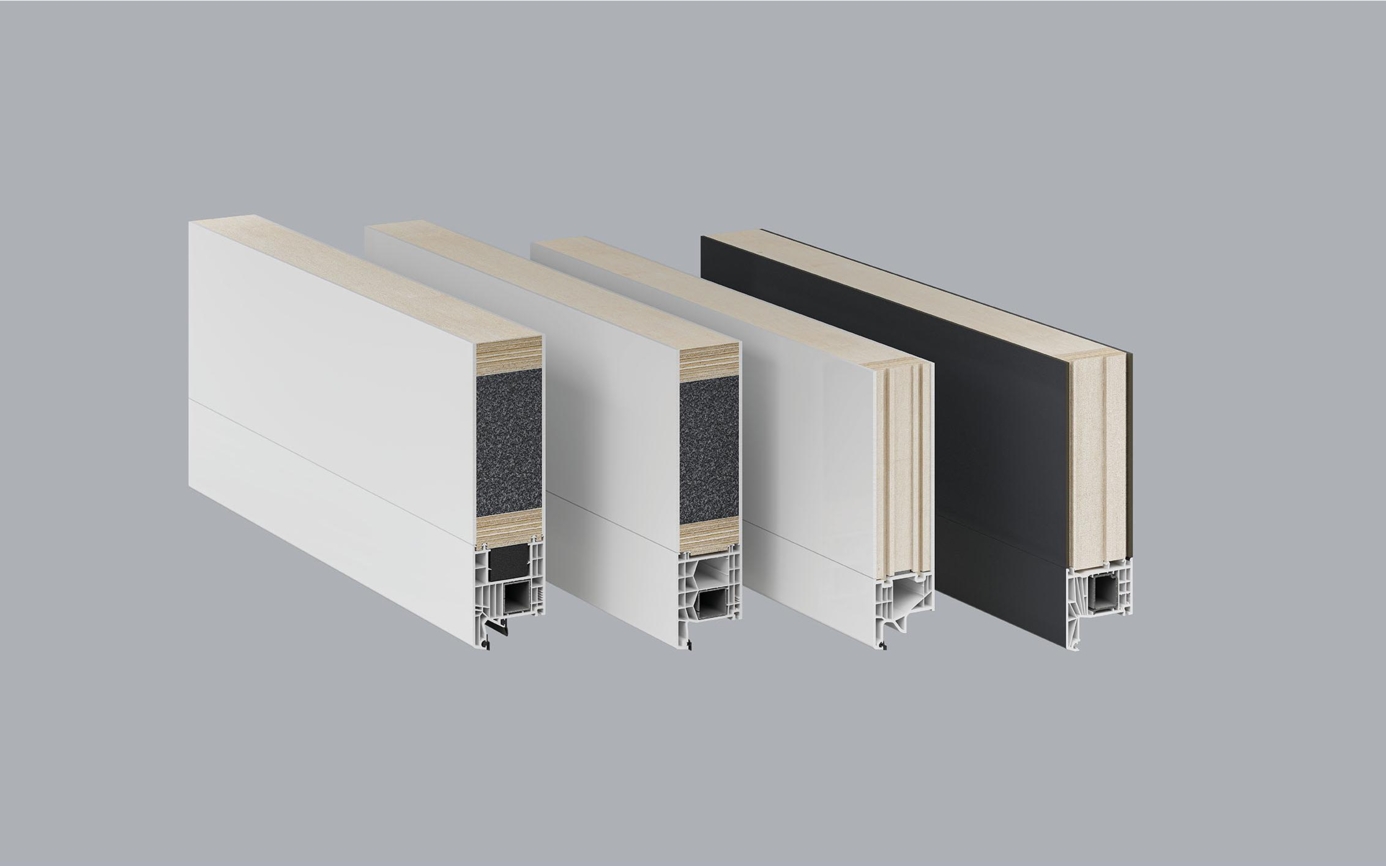

The Frinorm standard frame extension elements for plastic windows are especially suitable for meeting high thermal insulation requirements. They are available in hard PVC in different shades of white (Veka, Kömmerling or Internorm) or HPL with decorative foil (all colours). Expanded polystyrene rigid foam with graphite additive (EPS lambda), 25 kg/m³, is used as standard for thermal insulation. Other types of thermal insulation, such as PUR rigid foam or glass wool, are also available. The frame extension elements are fabricated with a circumferential plywood edge band or an edge band only on the long sides. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"9ac9191b92f860fb764a84eb4885d115.pdf","name":"Product description"},{"filename":"2bba1b90de686ad8335b096366b104fb.pdf","name":"Technical details"},{"filename":"a05ae9e1dd24824a3ae189b62354d2ec.pdf","name":"Physical material properties of the applied materials"},{"filename":"e9a45238296bd277a5d0fe2f7cecda41.pdf","name":"Test report, 34 dB, HART-PVC 4"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
