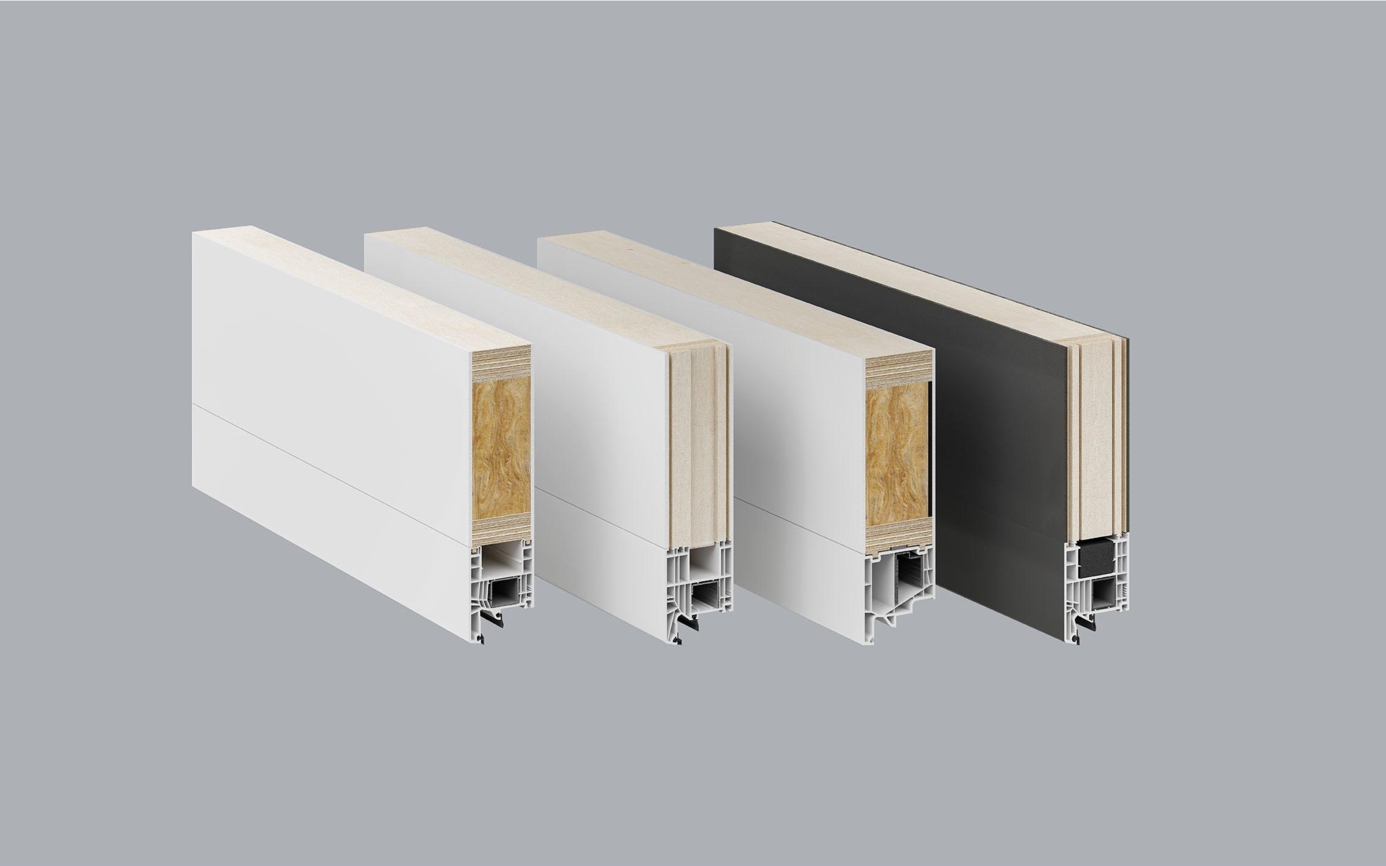

Frame extension elements for plastic windows

Properties

Product description

Surfaces	Hard PVC, white (Veka, Kömmerling, Internorm) Decorative foil (various colours available)
Support panels	Hard PVC, 4 mm HPL, coated with decorative foil, 4 mm
Insulation	Glass wool, 70 kg/m³
Sound insulation	Heavy bitumen foil, 5 mm
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	58 to 99 mm
Formats	Hard PVC: 500 × 95 mm up to 3588 × 1294 mm HPL, decorative foil: 500 × 95 mm up to 3038 × 1294 mm

The Frinorm sound-insulated frame extension elements for plastic windows are especially suitable for meeting high sound insulation and thermal insulation requirements. They are available in hard PVC in different shades of white (Veka, Kömmerling or Internorm) or HPL with decorative foil (all colours). Depending on the sound insulation requirements, the frame extension elements are fabricated with heavy bitumen foil. Glass wool, 70 kg/m³, is used for thermal insulation. The frame extension elements are fabricated with a circumferential plywood edge band. Special edge bands are inset according to your requirements.

Downloads

[{"filename":"1eafcfb3468c168a860da54f3fcadfb1.pdf","name":"Product description"},{"filename":"71e3989b183464e80704b17fbea2c3c4.pdf","name":"Technical details"},{"filename":"22e6dbeb3c02dd23a5649f11aff847de.pdf","name":"Physical material properties of the applied materials"},{"filename":"f0af4552c8ab0c1afdda3820f617bd1b.pdf","name":"Test report, 37 dB, HART-PVC 4"},{"filename":"dc24514e08afb50790dd017910d11fa4.pdf","name":"Test report, 44 dB, HART-PVC 4"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
