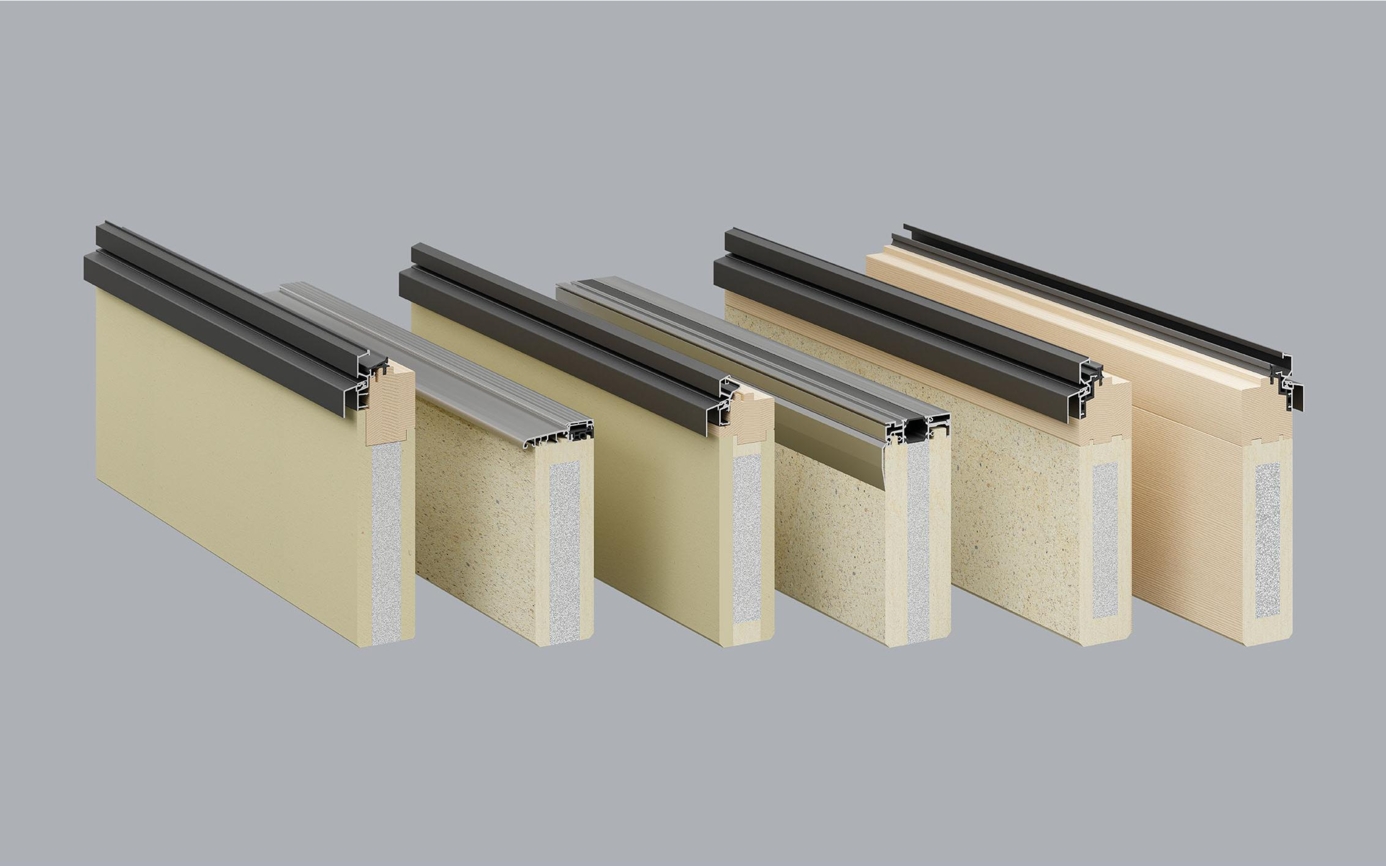

Substructure elements for windows and doors

custom manufacturing / moisture- and rot-resistant

Properties

Product description

Surfaces	Untreated, real wood veneer
Support panels	Recycled polyurethane board, CL, 16 mm Recycled polyurethane board, PH, 16 or 26 mm
Insulation	Intensely expanded rigid polystyrene foam (EPS perimeter), 30 kg/m³
Edge band	Polyurethane recycled board, PH
Thicknesses	40 to 99 mm
Formats	CL: 500 x 95 to 3038 x 600 mm PH: 500 x 95 to 3588 x 600 mm

The moisture- and mildew-resistant CL and PH substructure elements for floors from Frinorm are suitable for extensive requirements. The substructure elements comply with the SIA 271 standard "Seals in building construction" and are characterised by good thermal insulation and a high load capacity. The elements consist of an environmentally friendly, polyurethane recycled board in the designs CL (untreated) or PH (untreated or veneered) and do not contain CFCs, HCFCs or formaldehyde. Intensely expanded polystyrene rigid foam (EPS perimeter), 30 kg/m³, is used for thermal insulation. Depending on the mounting options, the substructure elements are available in variants without concealed edge bands, with one or with two concealed edge bands made of polyurethane recycled boards, to ensure maximum flexibility and stability.

Downloads

[{"filename":"b71731595a1358856f4db67d472abc34.pdf","name":"Product description"},{"filename":"f841aff16ad188fc67b8eaaaa49376e7.pdf","name":"Technical details"},{"filename":"783d0bec79e0764b8d5d023cf3f6b42e.pdf","name":"Physical material properties of the applied materials"},{"filename":"4b317f0365edf1feb0bd005f666d33ad.pdf","name":"Test report, 31 dB, PUR, PH 16"},{"filename":"28cb2c83fa7346f7a56b0b6e06a3800e.pdf","name":"Test report, 33 dB, PUR, CL 16"}]

Services

Properties

Moisture- and rot-resistant
Meets the Swiss standard SIA 271 “Waterproofing for buildings”
Thermal insulation values up to 0,38 W/m²K
High load-bearing capacity
Good mounting options
Elements can be manufactured without, with one or with two concealed edge bands
Airborne sound insulation values up to 33 dB
Retain their shape and dimensions

Product description

Services – your advantages at a glance

Clear price structure: many services are already included
Custom-made to your specifications
Picked and labelled for delivery
CNC edge machining on all sides to match the frame and threshold profile
Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
Special glued joints available on request fora optimum fastening
Large selection of real wood veneers and material combinations
No waste and no machine, labour or storage costs
