Substructure elements for windows and doors

Standard length / moisture- and rot-resistant

Properties

Product description

Surfaces	Hard PVC, white Recycled polyurethane, untreated
Support panels	PVC integral foam board white, 10 mm Recycled polyurethane board, PH covered with hard PVC, white, 1 mm Recycled polyurethane board, PH, 16 mm
Insulation	Intensely expanded rigid polystyrene foam (EPS perimeter), 30 kg/m³
Edge band	PVC integral foam board, grey, 19 mm Recycled polyurethane board, PH, 26 mm
Thicknesses	50, 55, 60, 64, 66, 67, 68, 74, 82 mm
Length	Standard length: 2988 mm Lengths can be extended indefinitely with dovetail joints
Heights	40-285 mm Heights can bei connected
U-Value	0,90 to 0,42 W/m²K

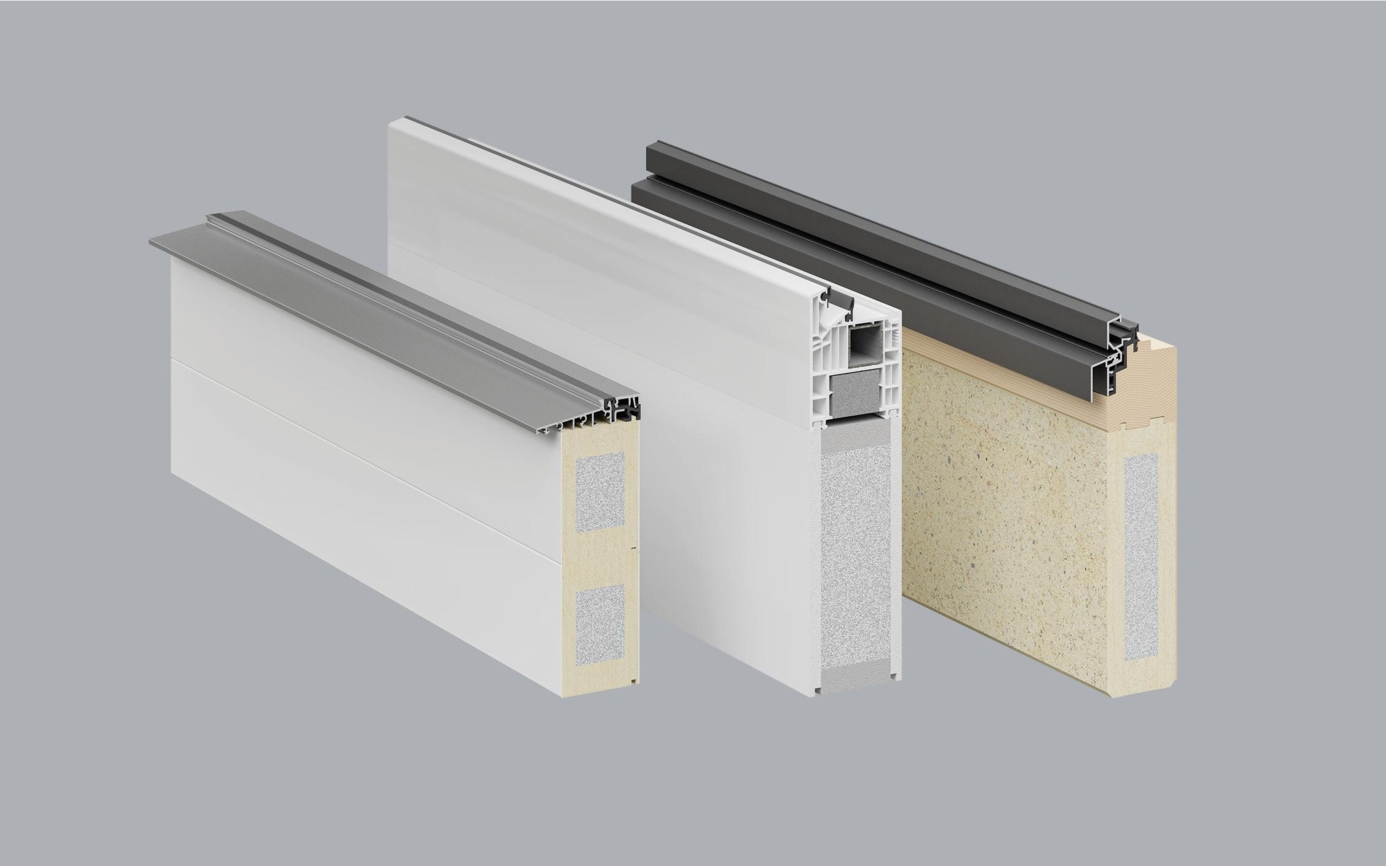

The moisture- and rot-resistant substructure elements from Frinorm are suitable for windows, house and balcony doors made of wood, wood-metal, and plastic and aluminium profile systems. The IHP10, PHP12 and PH16 models are particularly suitable for the floor area and demanding applications. The substructure elements comply with the Swiss standard SIA 271 “Waterproofing for buildings” and provide both good thermal insulation and high load-bearing capacity. The elements consist of: Integral foam board made of rigid PVC, 10 mm, or polyurethane recycled board, 12 mm, covered with a white rigid PVC board, 1 mm, or untreated polyurethane recycled board, 16 mm. Intensely expanded polystyrene rigid foam (EPS perimeter) with 30 kg/m³ is used as thermal insulation. For fastening, the substructure elements are equipped with two edge bands to ensure maximum flexibility and stability.

Downloads

[{"filename":"f52d2164a4855d1b803c3ee98bd59ddb.pdf","name":"Product description"},{"filename":"5643969e38b3a8ecad0689d3e4632479.pdf","name":"Technical details"},{"filename":"c44bca25fa33d918be7a45038ec1e723.pdf","name":"Physical material properties of the applied materials"}]

Services

Properties

Moisture- and rot-resistant
Meets the Swiss standard SIA 271 “Waterproofing for buildings”
Provides reliable protection against moisture damage and mould formation
Effective insulation with high potential for energy savings
Thermal insulation values of up to 0.42 W/m²K can be achieved
Permanently eliminates energy losses on components with floor slab connections
High load-bearing capacity
Dimensionally stable
Flexible and robust mounting options thanks to integrated edge band
Simple and time-saving installation
Can be extended in length as desired thanks to dovetail connections - for seamless extension
Can also be connected in height - different heights can be flexibly combined to meet the desired total length
No offcuts
Ideal for storage, as it can be connected in both length and height

Product description

Services – your advantages at a glance

Clear price structure: many services are already included
Custom-made to your specifications
Picked and labelled for delivery
CNC edge machining on all sides to match the frame and threshold profile
Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
Special glued joints available on request fora optimum fastening
Large selection of real wood veneers and material combinations
No waste and no machine, labour or storage costs
