window construction Frame extension elements for lifting sliding doors Wood / Wood-metal
Eco

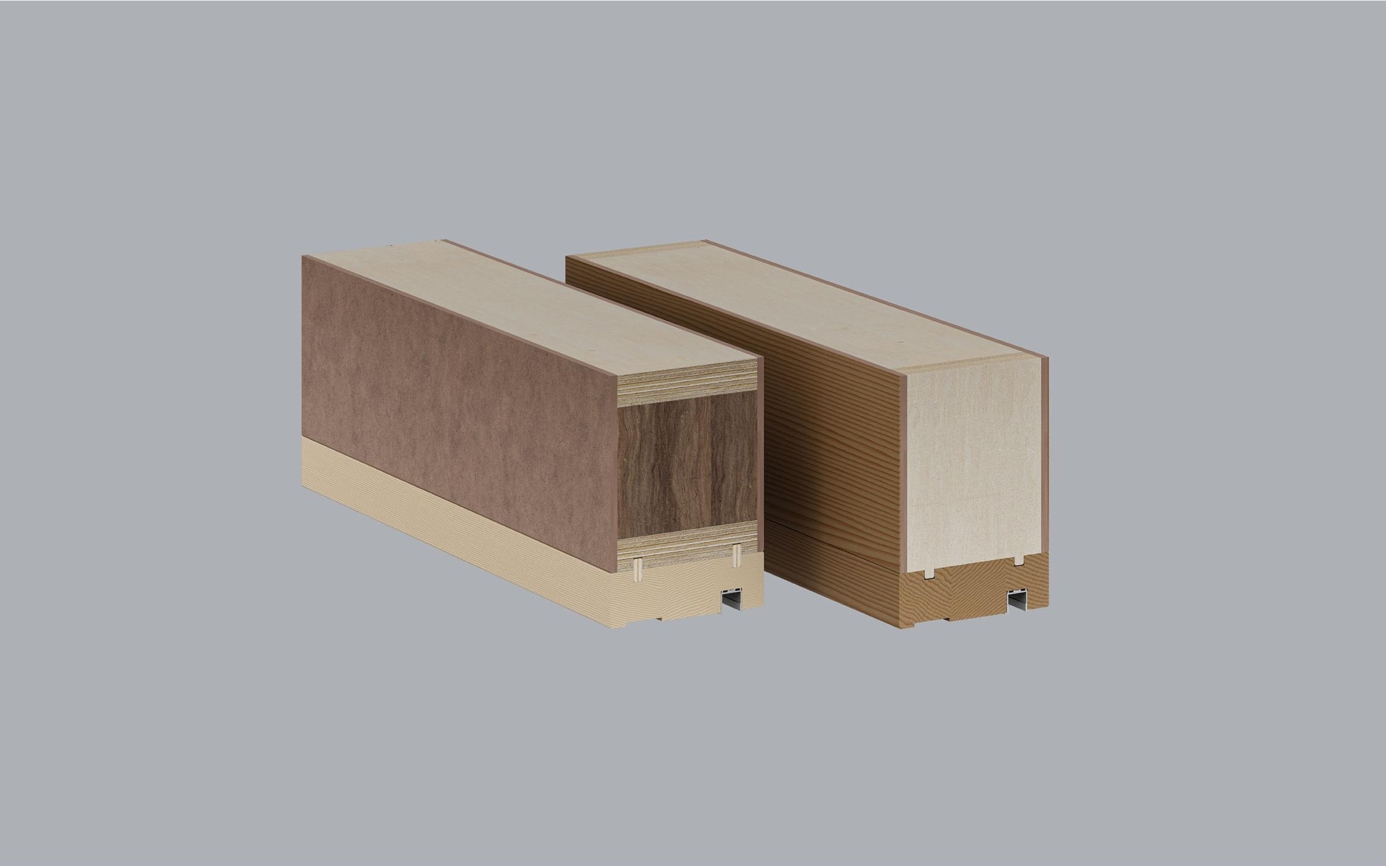

Frame extension elements for wooden and wood-metal lifting sliding doors

Eco

Properties

Product description

SurfacesUntreated, real wood veneer
Support panelsBiofiber hardboard, HB.H, EN 316, PEFC, 8 mm
InsulationGlass wool, FA 50 Carbolane, 45 kg/m³
Edge bandPoplar plywood, class 2, E1, PEFC
Thicknesses100 to 220 mm
Formats500 x 95 to 3588 x 1294 mm

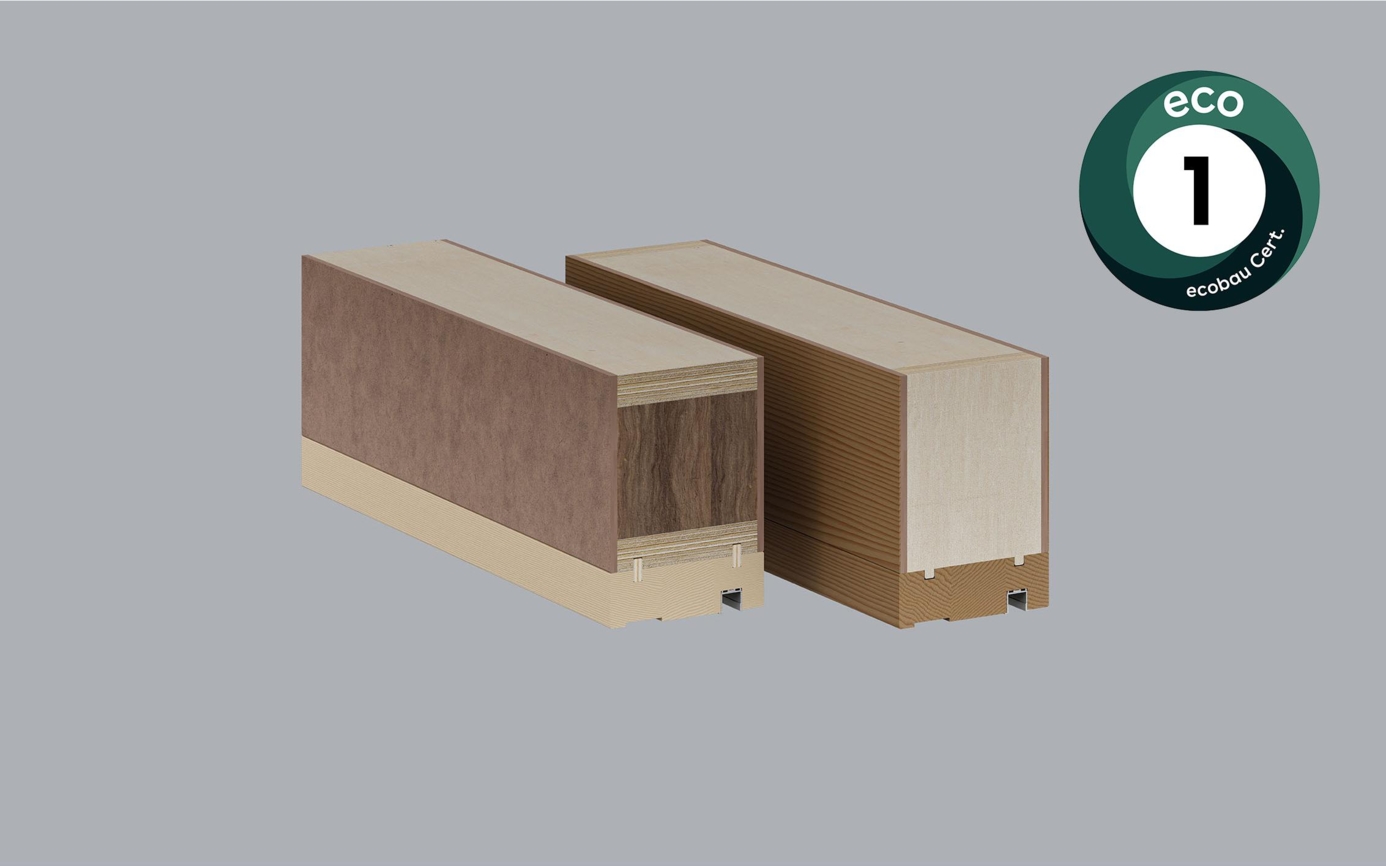

The Frinorm Eco frame extension elements for wooden and wood-metal lifting sliding doors are especially suitable for meeting the Minergie (-P/-A)-ECO building standard, equivalent to 1st priority ecoBKP/ecoDevis. Minergie (-P/-A)-ECO is the building standard for healthy and ecological construction. The Frinorm Eco frame extension element meets the highest ecobau and Minergie-ECO requirements in terms of ecological and health specifications and has been awarded the eco1 rating (Reg. No. 202311.12668). The Eco frame extension elements are available with a hard biofibre board, HB.H, either untreated or with real wood veneer. Glass wool, FA 50 Carbolane, 45 kg/m³, is used for thermal insulation. The frame extension elements are fabricated with a circum- ferential spruce pine edge band or with the edge band only on the long sides. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"17c6cfbbc3d4f685ae83cf2d8ddcb81d.pdf","name":"Product description"},{"filename":"cf796fc66036e41a47a6f0444f005633.pdf","name":"Technical details"},{"filename":"922853c81ecab740355383356209a020.pdf","name":"Physical material properties of the applied materials"},{"filename":"6154f7eef4c1462c075069e71d784b8c.pdf","name":"Test report, 40 dB, SPAN 10"},{"filename":"90536626069907bcdd8e74fb6d38e678.pdf","name":"ECO certificate"}]

Services

Properties

  • ECO1 certified (ecobau)
  • Thermal insulation values up to 0,14 W/m²K
  • Airborne sound insulation values up to 40 dB
  • Circumferential wooden edge band
  • Good mounting options
  • Retain their shape and dimensions
  • Problem-free surface finishing

Product description

Services – your advantages at a glance

  • Clear price structure: many services are already included
  • Custom-made to your specifications
  • Picked and labelled for delivery
  • CNC edge machining on all sides to match the frame and threshold profile
  • Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
  • Special glued joints available on request fora optimum fastening
  • Large selection of real wood veneers and material combinations
  • No waste and no machine, labour or storage costs
