Frame extension elements for wooden and wood-metal lifting sliding doors

Properties

Product description

Surfaces	Untreated, primer foil, real wood veneer
Support panels	Plywood okoumé, class 3, E1, FSC, 12 mm Birch plywood, white primer foil, class 3, E1, FSC, 8 mm
Insulation	Glass wool, 20 kg/m³
Sound insulation	Heavy bitumen foil, 5 mm
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	100 to 220 mm
Formats	Untreated, real wood veneer: 500 x 95 to 3088 x 1294 mm Primer foil: 500 x 95 to 2988 x 1294 mm

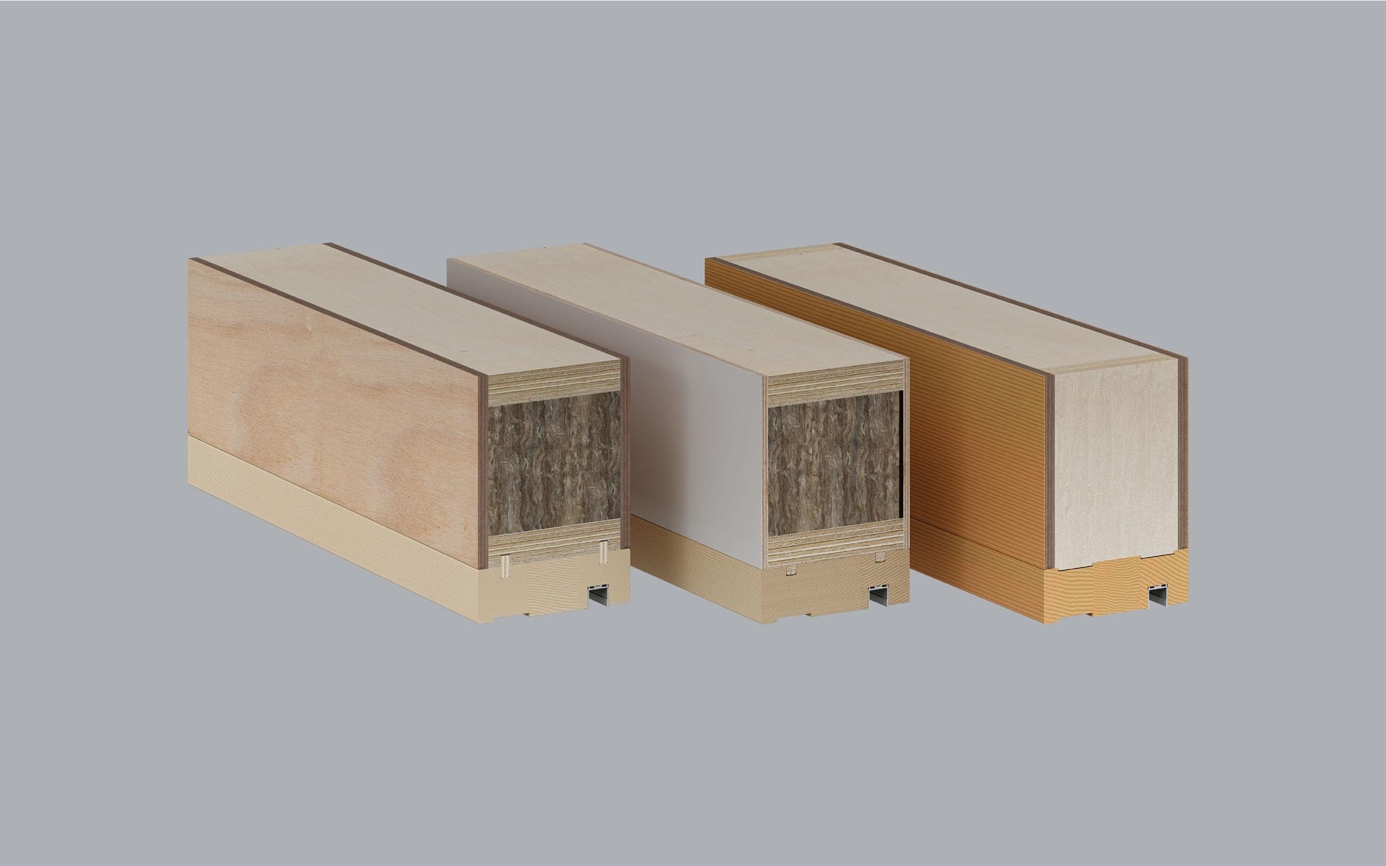

The Frinorm moisture-resistant and sound-insulated frame extension elements for wooden and wood-metal lifting sliding doors are especially suitable for meeting high moisture resistance, sound insulation and thermal insulation requirements. They are available with plywood panel (class 3, E1) - in a raw finish, with priming foil, or with real wood veneer in any wood type. Depending on the sound insulation requirements, the frame extension elements are fabricated with glass wool thermal insulation, 20 kg/m³ and heavy bitumen foil. The frame extension elements are fabricated with a circumferential plywood edge band. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"02035f88c8d262bd1a1a6ba3733e851e.pdf","name":"Product description"},{"filename":"fb13938d703c7d5a34b39472adfd1505.pdf","name":"Technical details"},{"filename":"0cbdedade3609af43c6f5696e0d4f80a.pdf","name":"Physical material properties of the applied materials"},{"filename":"734bc0adba3cdd2a8fbbd470df96dd42.pdf","name":"Test report, 40 dB, SPAN 10"},{"filename":"5418387aec350ad4dfa4f6806dbbbc19.pdf","name":"Test report, 46 dB, SPAN 10"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
