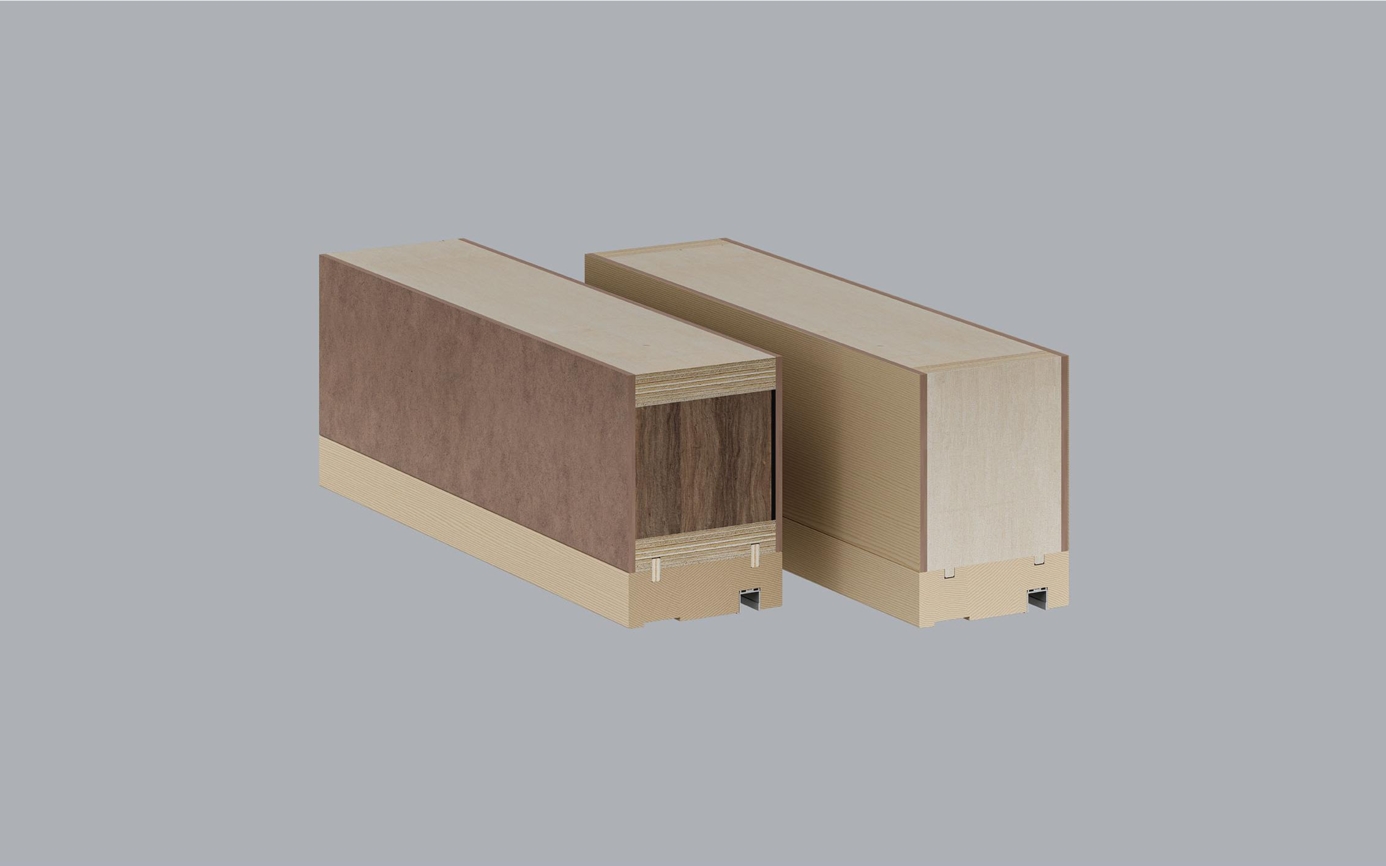

Frame extension elements for wooden and wood-metal lifting sliding doors

Properties

Product description

Surfaces	Untreated, real wood veneer
Support panels	Biofiber hardboard, HB.H, EN 316, PEFC, 8 mm
Insulation	Glass wool, FA 50 Carbolane, 45 kg/m³
Sound insulation	Heavy bitumen foil, 5 mm
Edge band	Poplar plywood, class 2, E1, PEFC
Thicknesses	100 to 220 mm
Formats	500 x 95 to 3588 x 1294 mm

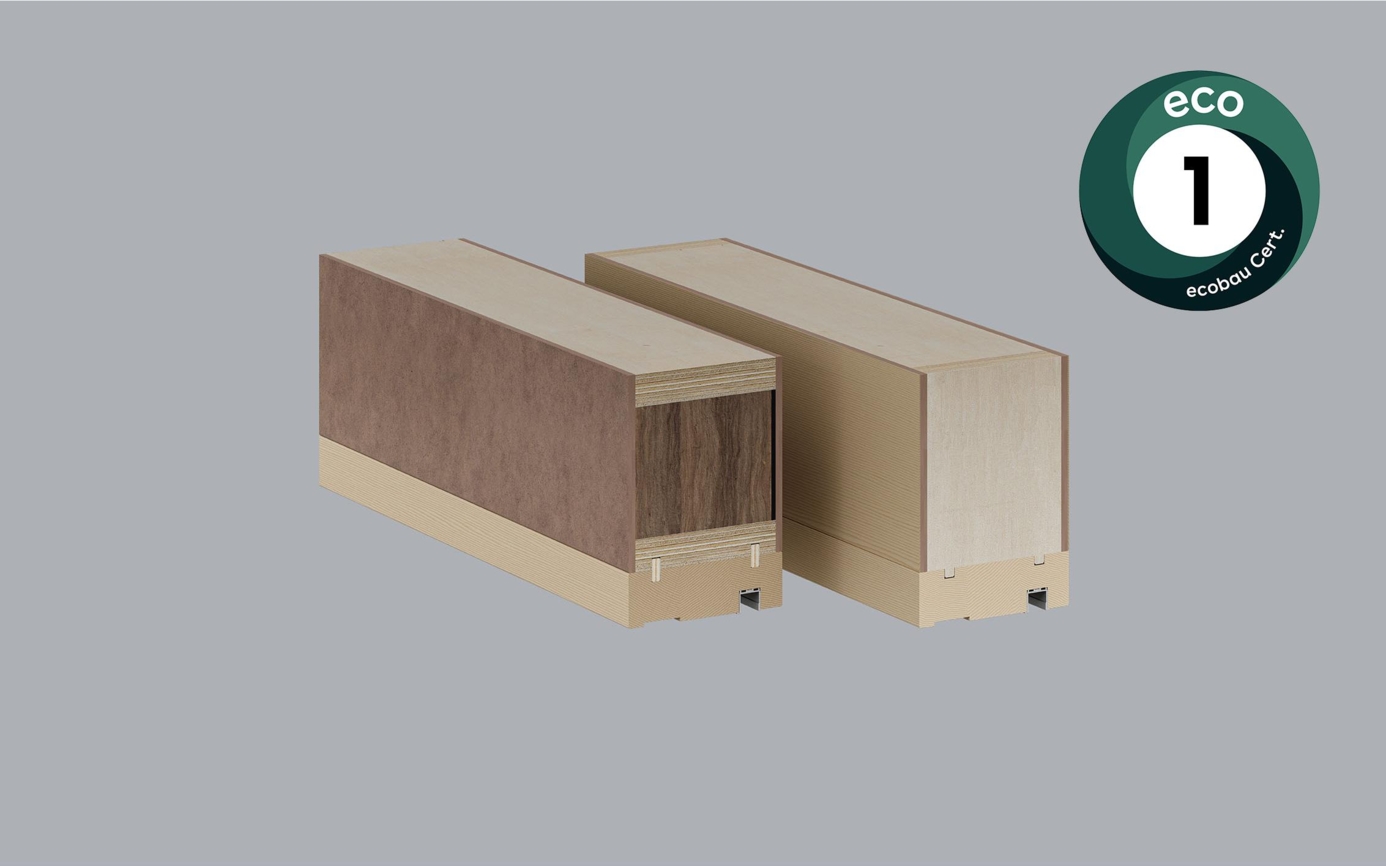

The Frinorm Eco sound-insulated frame extension elements for wooden and wood-metal lifting sliding doors are especially suitable for meeting high sound insulation requirements and the Minergie (-P/-A)-ECO building standard, equivalent to 1st priority ecoBKP/ ecoDevis. Minergie (-P/-A)-ECO is the building standard for healthy and ecological construction. The Frinorm Eco sound-insulated frame extension element meets the highest ecobau and Minergie-ECO requirements in terms of ecological and health specifica- tions and has been awarded the eco1 rating (Reg. No. 202311.12666). The Eco sound-insulated frame extension elements are available with biofibre hardboard, HB.H, either untreated or with real wood veneer. Depending on the sound insulation require- ments, the frame extension elements are fabricated with one or two heavy bitumen foils. Glass wool, FA 50 Carbolane, 45 kg/m³, is used for thermal insulation. They are fabricated with a circumferential spruce pine edge band. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"f562d1f13f5423bf31e0ba8040c0f936.pdf","name":"Product description"},{"filename":"dd48ce748a2d88525943efa119f86c70.pdf","name":"Technical details"},{"filename":"d5314feab8cf590df6032fc266d37fe3.pdf","name":"Physical material properties of the applied materials"},{"filename":"d0bfca037db262c72a1c8bb8b02cb040.pdf","name":"Test report, 46 dB, SPAN 10"},{"filename":"c73d5f881dfd96437c63146b6eb7a2f4.pdf","name":"ECO certificate"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
