window construction Frame extension elements for lifting sliding doors Wood / Wood-metal
Standard

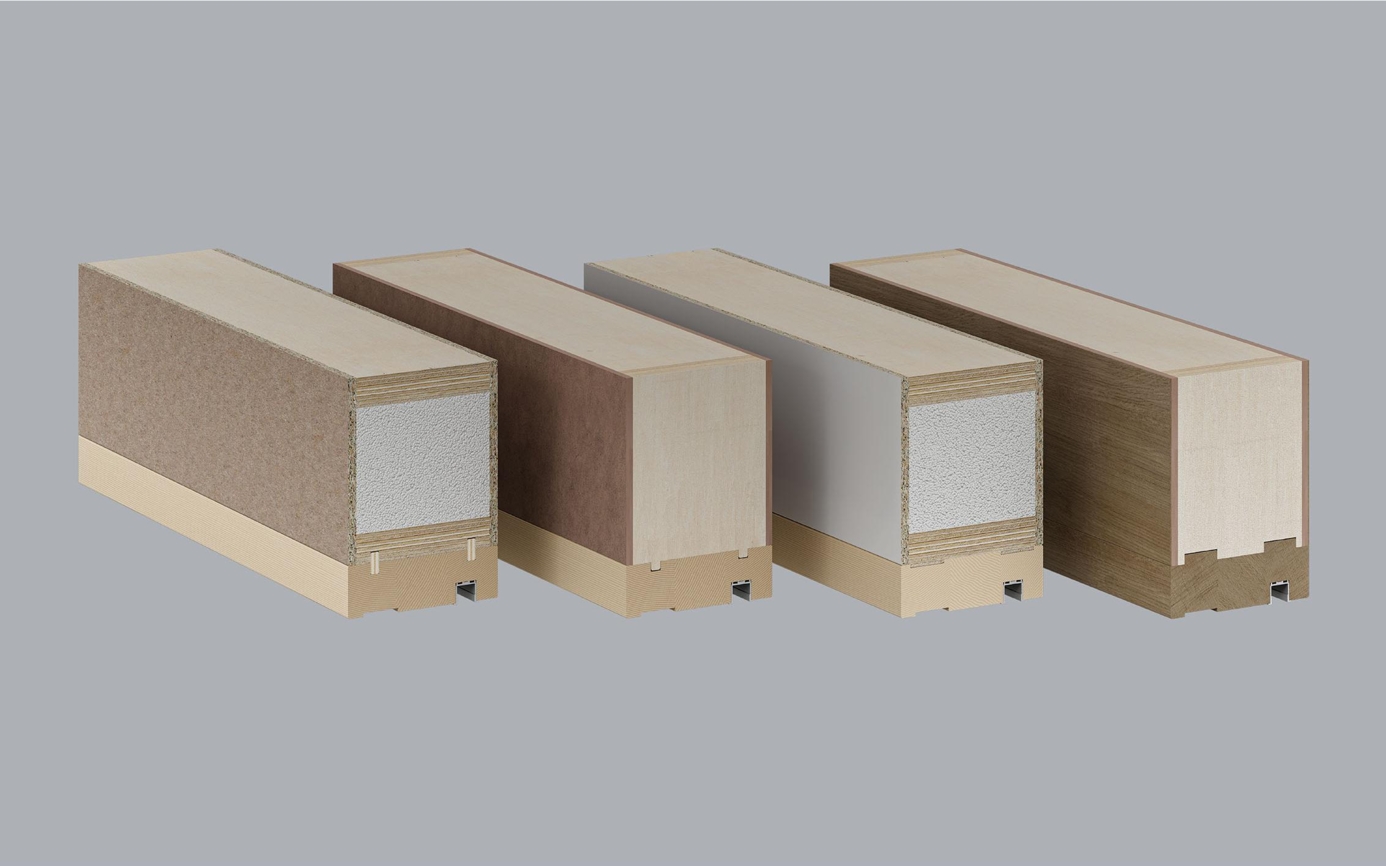

Frame extension elements for wooden and wood-metal lifting sliding doors

Standard

Properties

Product description

SurfacesUntreated, primer foil, real wood veneer
Support panelsChipboard P5, E1, PEFC, 10 mm
Biofiber hardboard, HB.H, EN 316, PEFC, 8 mm
Chipboard, white primer foil, P5, E1, PEFC, 10 mm
MDF, white primer foil, P21, E1, 10 mm
InsulationExpanded polystyrene rigid foam (EPS), 15 kg/m³
Edge bandPoplar plywood, class 2, E1, PEFC
Thicknesses100 to 220 mm
Formats500 x 95 to 3588 x 1294 mm
The Frinorm frame extension elements for wooden and wood-metal lifting sliding doors are especially suitable for meeting high thermal insulation requirements. They are available with chipboard P5, E1, either untreated, covered with primer foil or with a real wood veneer in all types of wood, biofibre hardboard, HB.H, either untreated or with a real wood veneer, or medium-density fibreboard (MDF), P213, E1, with primer foil. Expanded rigid polystyrene foam (EPS), 15 kg/m³, is used for thermal insulation. The frame extension elements are fabricated with a circumferential plywood edge band. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"439018e72c422f56d50985442f44f7e9.pdf","name":"Product description"},{"filename":"89e46df38e86585739b4a4866d717fe0.pdf","name":"Technical details"},{"filename":"03f79196ff6fe91ace4db894ad1be400.pdf","name":"Physical material properties of the applied materials"},{"filename":"b13679ddf908d7f336b3b6563b10f9f6.pdf","name":"Test report, 26 dB, SPAN 10"}]

Services

Properties

  • Thermal insulation values up to 0,17 W/m²K
  • Airborne sound insulation values up to 26 dB
  • Circumferential wooden edge band
  • Good mounting options
  • Retain their shape and dimensions
  • Problem-free surface finishing

Product description

Services – your advantages at a glance

  • Clear price structure: many services are already included
  • Custom-made to your specifications
  • Picked and labelled for delivery
  • CNC edge machining on all sides to match the frame and threshold profile
  • Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
  • Special glued joints available on request fora optimum fastening
  • Large selection of real wood veneers and material combinations
  • No waste and no machine, labour or storage costs
