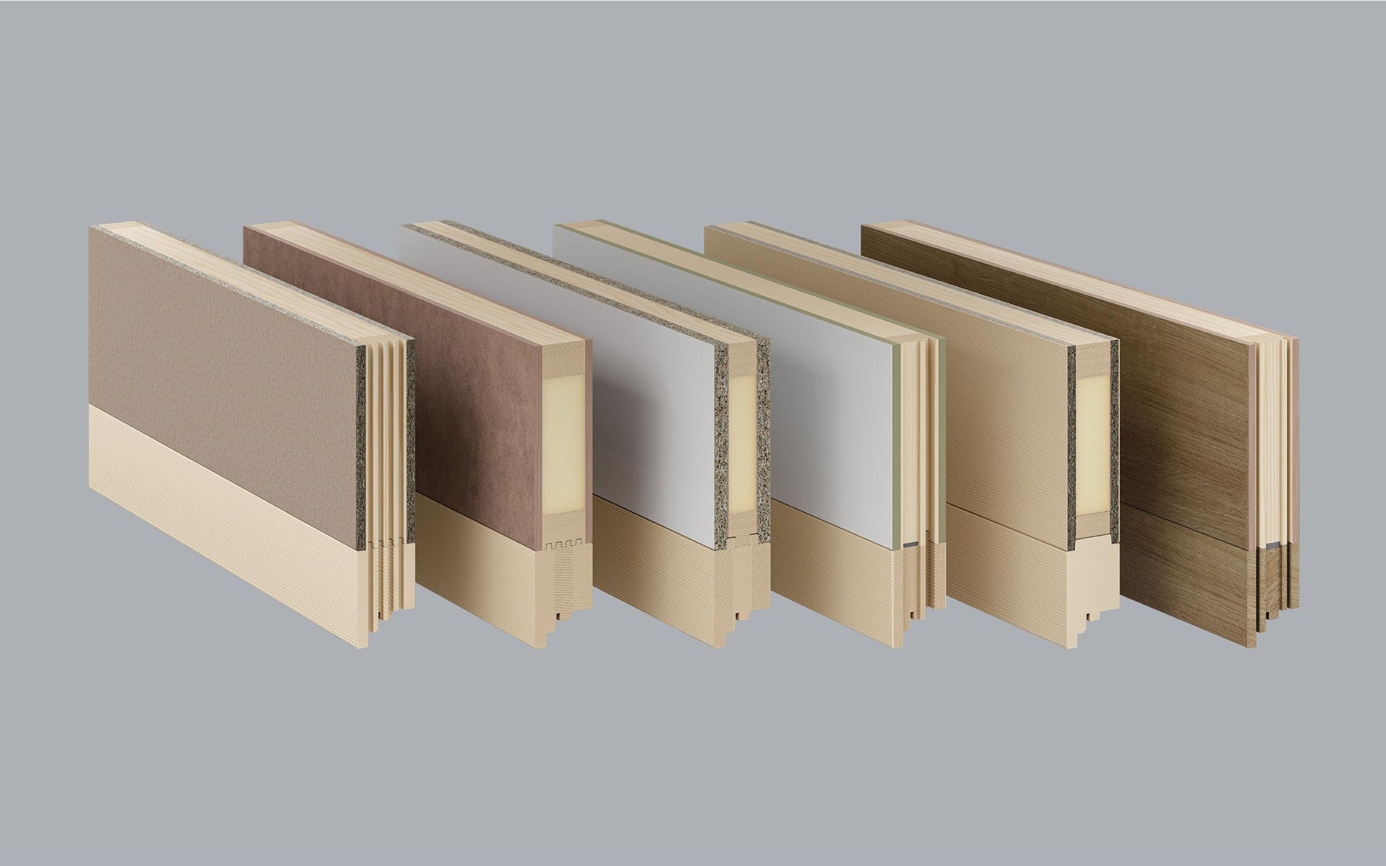

Frame extension elements for wooden and wood-metal windows

Standard

Properties

Product description

Surfaces	Untreated, primer foil, real wood veneer
Support panels	Chipboard P5, E1, PEFC, 10 or 16 mm MDF, white primer foil, P213, E1, 10 or 16 mm Biofibre hardboard HB.H, EN 316, PEFC, 8 mm MDF, white primer foil, P213, E1, 10 mm
Insulation	PUR rigid foam, 32 kg/m³ Expanded rigid polystyrene foam with graphite additive (EPS lambda), 25 kg/m³
Edge band	Solid spruce wood, PEFC Poplar plywood, class 2, E1, PEFC
Thicknesses	40 to 99 mm
Formats	500 x 95 to 3588 x 1294 mm

The Frinorm standard frame extension elements for wooden and wood-metal windows are especially suitable for meeting high thermal insulation requirements. They are available with chipboard P5, E1, either untreated, covered with primer foil or with a real wood veneer in all types of wood, biofibre hardboard, HB.H either untreated or with a real wood veneer, or medium-density fibreboard (MDF), P213, E1, with primer foil. PUR rigid foam, 32 kg/m³, is used as standard for thermal insulation. Other types of thermal insulation, such as expanded rigid polystyrene foam with graphite additive (EPS lambda), glass wool or cork, are also available. The frame extension elements are fabricated with a circumferential spruce edge band, or an edge band only on the long sides. Special edge bands are inset according to your requirements.

Downloads

[{"filename":"cb8c599baa2e5b2784ee931775e02d1d.pdf","name":"Product description"},{"filename":"a7b5f802d78037c8024f399241724d95.pdf","name":"Technical details"},{"filename":"43923f4594de0c9540c13c0958d233c0.pdf","name":"Physical material properties of the applied materials"},{"filename":"f7bba93cfb6c63ef6de110e8a42cc1c1.pdf","name":"Test report, 29 dB, SPAN 10"},{"filename":"3071090424f0459afe43ba5e6af584f2.pdf","name":"Test report, 29 dB, MDF 10"},{"filename":"3cd9e88c6ea84ff2edb2a3e49ecb7ee6.pdf","name":"Test report, 31 dB, BIO 8"},{"filename":"9ee5d3ae2564060f1cca3d4da685554a.pdf","name":"Test report, 32 dB, SPAN 16"}]

Services

Properties

Thermal insulation values up to 0,32 W/m²K
Airborne sound insulation values up to 32 dB
Circumferential wooden edge band
Good mounting options
Retain their shape and dimensions
Problem-free surface finishing

Product description

Services – your advantages at a glance

Clear price structure: many services are already included
Custom-made to your specifications
Picked and labelled for delivery
CNC edge machining on all sides to match the frame and threshold profile
Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
Special glued joints available on request fora optimum fastening
Large selection of real wood veneers and material combinations
No waste and no machine, labour or storage costs
