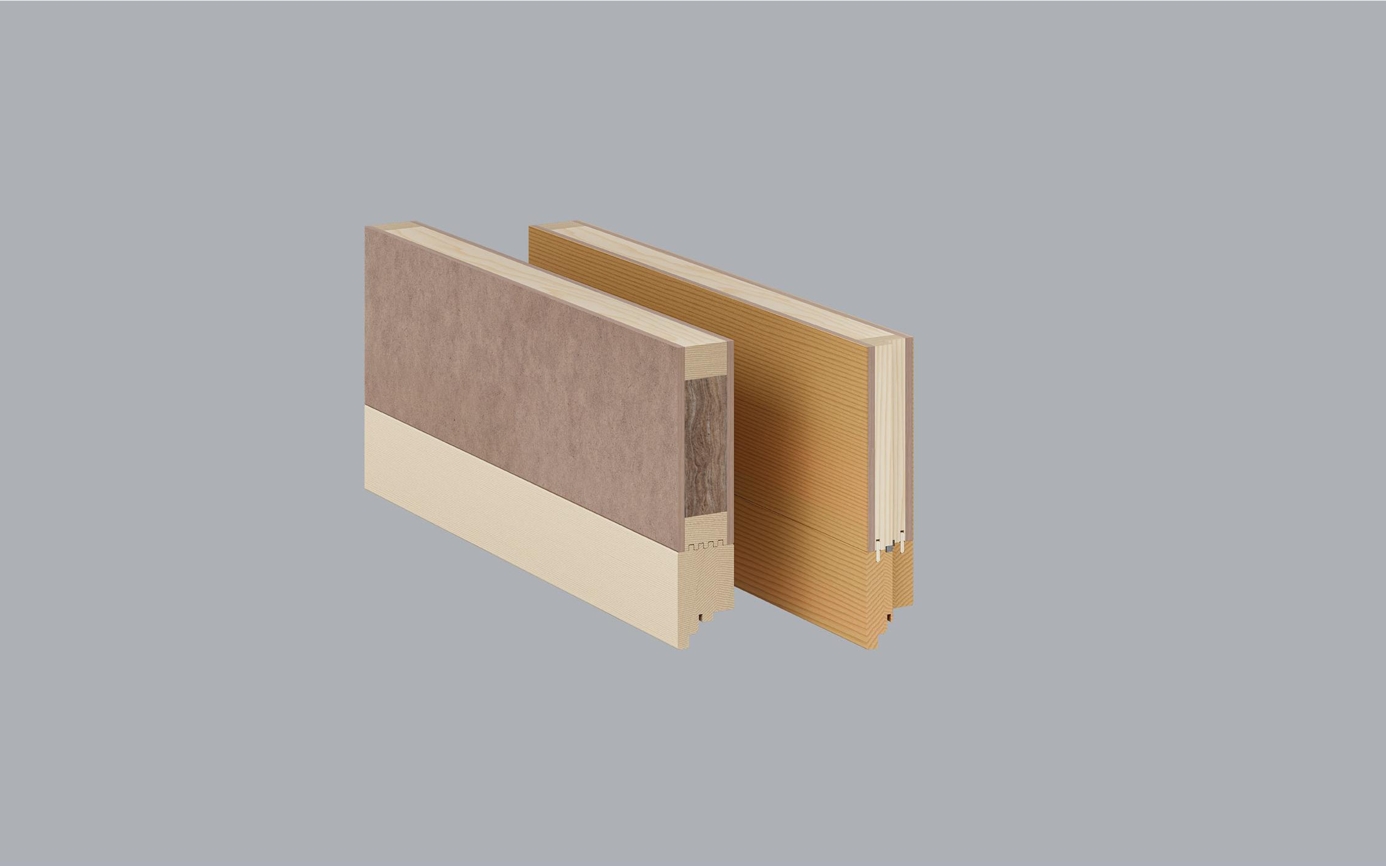

Frame extension elements for wooden and wood-metal windows

Eco

Properties

Product description

Surfaces	Untreated, real wood veneer
Support panels	Biofiber hardboard, HB.H, EN 316, PEFC, 8 mm
Insulation	Glass wool, FA 50 Carbolane, 45 kg/m³
Edge band	Solid spruce wood, PEFC Poplar plywood, class 2, E1, PEFC
Thicknesses	40 to 99 mm
Formats	500 x 95 to 3588 x 1294 mm

The Frinorm Eco frame extension elements for wooden and wood-metal windows are especially suitable for meeting the Minergie (-P/-A)-ECO building standard, equivalent to 1st priority ecoBKP/ecoDevis. Minergie (-P/-A)-ECO is the building standard for healthy and ecological construction. The Frinorm Eco frame extension element meets the highest ecobau and Minergie-ECO requirements in terms of ecological and health specifications and has been awarded the eco1 rating (Reg. No. 202209.11474). The Eco frame extension elements are available with biofibre hardboard, HB.H, either untreated or with real wood veneer. Glass wool, FA 50 Carbolane, 45 kg/m³, is used for thermal insulation. The frame extension elements are fabricated with a circumferential spruce pine edge band or with the edge band only on the long sides. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"82eadfd9e0bd498feec916f8f6704b14.pdf","name":"Product description"},{"filename":"a80f0259bed59a8aa870fb2ccbea4bd6.pdf","name":"Technical details"},{"filename":"a0fa512e98a3e572fd827313350fb86c.pdf","name":"Physical material properties of the applied materials"},{"filename":"875b87615c69bec84a7e938c0bb35675.pdf","name":"Test report, 38 dB, BIO 8"},{"filename":"ab75f8aae96955329a61fcc424554009.pdf","name":"ECO certificate"}]

Services

Properties

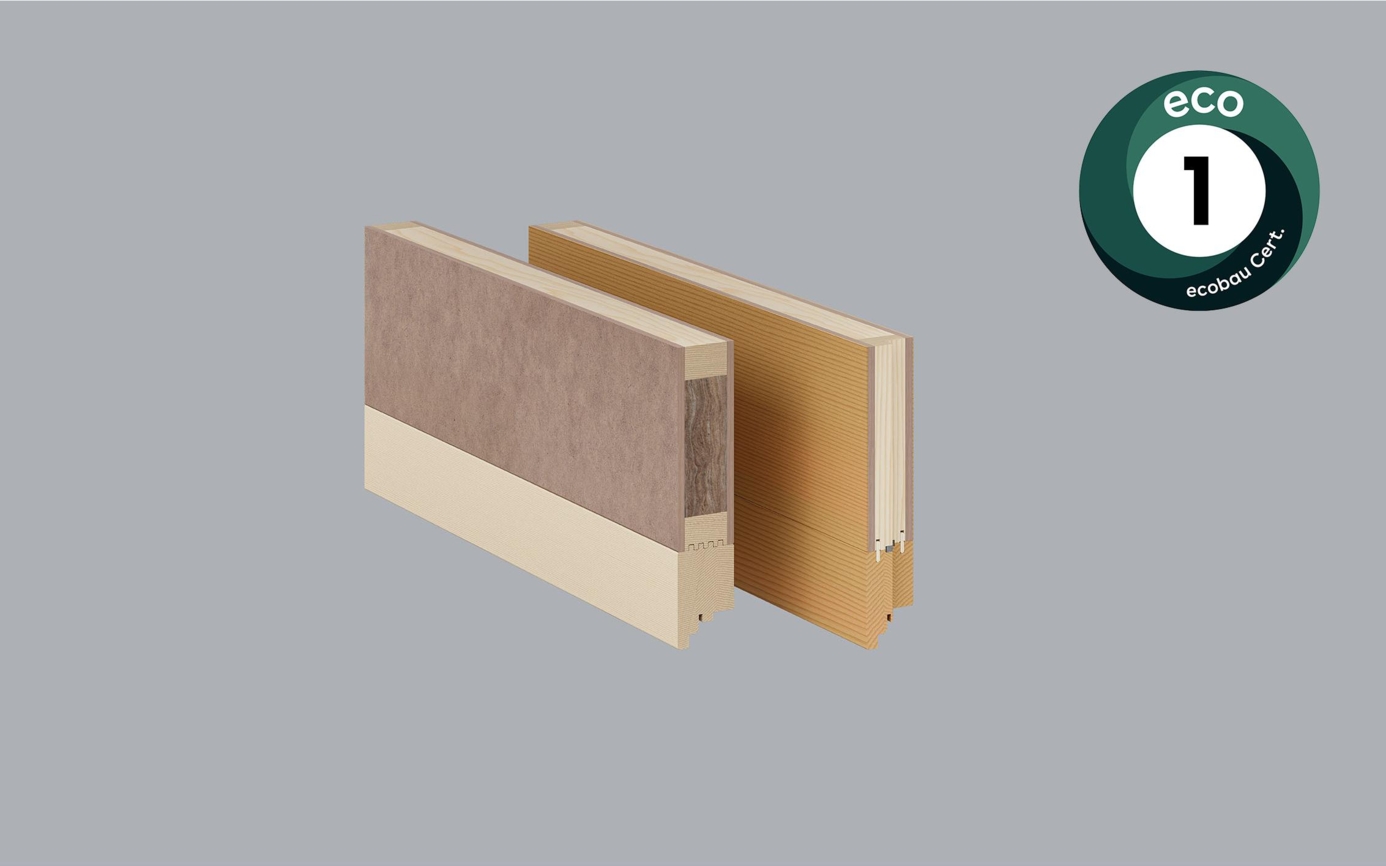

ECO1 certified (ecobau)
Thermal insulation values up to 0,32 W/m²K
Airborne sound insulation values up to 38 dB
Circumferential wooden edge band
Good mounting options
Retain their shape and dimensions
Problem-free surface finishing

Product description

Services – your advantages at a glance

Clear price structure: many services are already included
Custom-made to your specifications
Picked and labelled for delivery
CNC edge machining on all sides to match the frame and threshold profile
Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
Special glued joints available on request fora optimum fastening
Large selection of real wood veneers and material combinations
No waste and no machine, labour or storage costs
