Frame extension elements for wooden and wood-metal windows

Properties

Product description

Surfaces	Untreated, real wood veneer
Support panels	Biofiber hardboard, HB.H, EN 316, PEFC, 8 mm
Insulation	Glass wool, FA 50 Carbolane, 45 kg/m³
Sound insulation	Heavy bitumen foil, 5 mm
Edge band	Solid spruce wood, PEFC Poplar plywood, class 2, E1, PEFC
Thicknesses	40 to 99 mm
Formats	500 x 95 to 3588 x 1294 mm

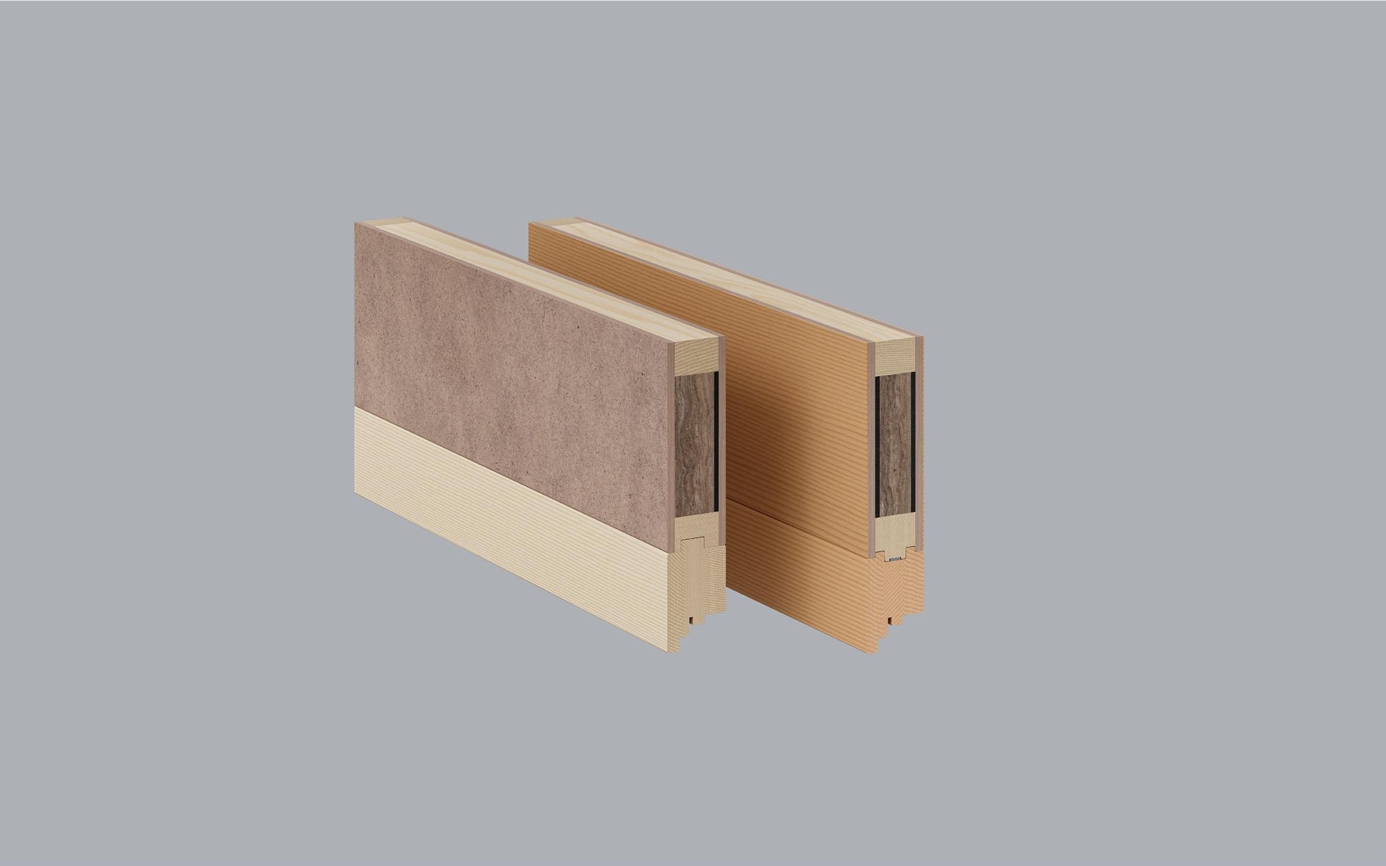

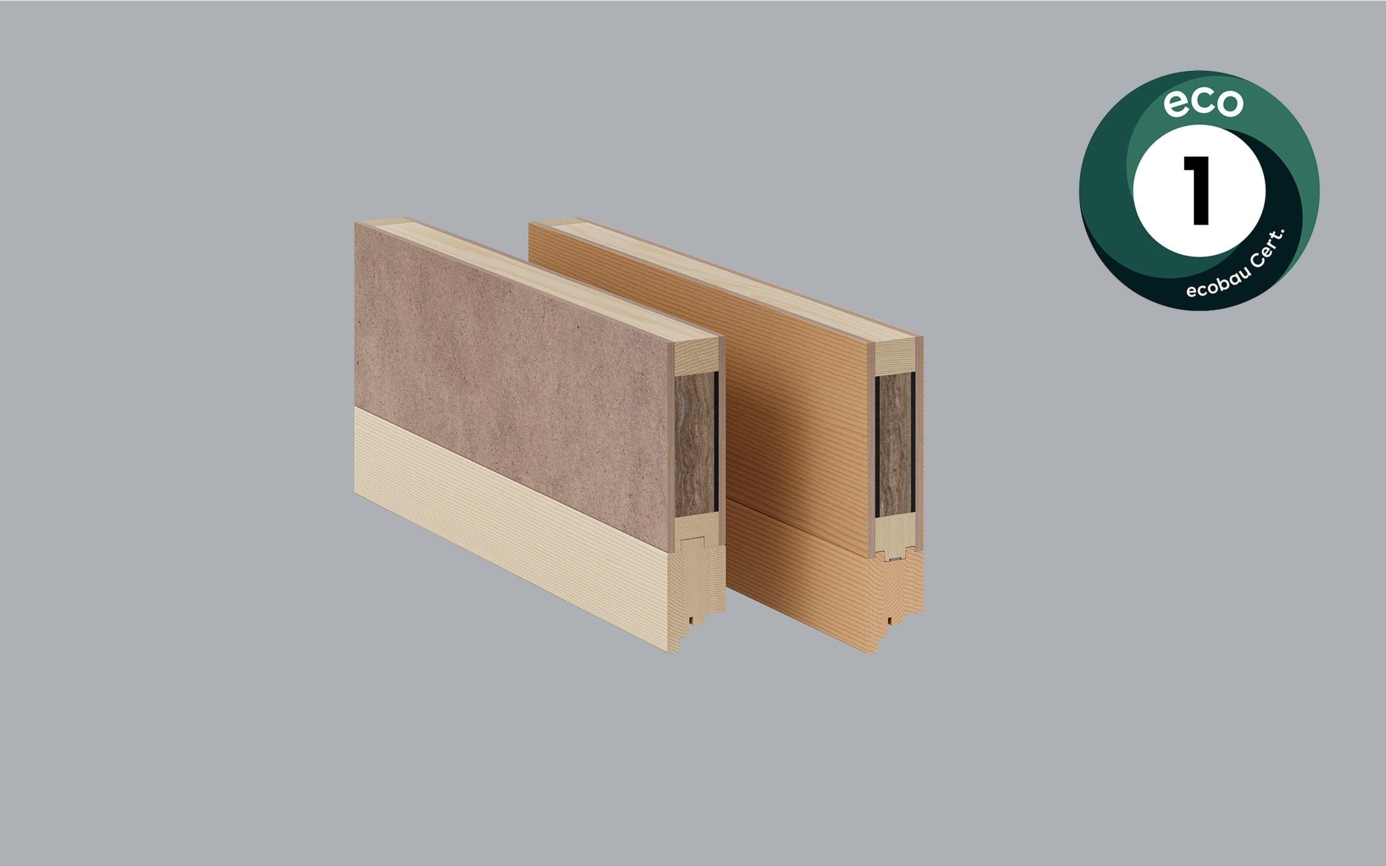

The Frinorm Eco sound-insulated frame extension elements for wooden and wood-metal windows are especially suitable for meeting high sound insulation requirements and the Minergie (-P/-A)-ECO building standard, equivalent to 1st priority ecoBKP/ecoDevis. Minergie (-P/-A)-ECO is the building standard for healthy and ecological construction. The Frinorm Eco sound-insulated frame extension element meets the highest ecobau and Minergie-ECO requirements in terms of ecological and health specifications and has been awarded the eco1 rating (Reg. No. 202311.12667). The Eco sound-insulated frame extension elements are available with biofibre hardboard, HB.H, either untreated or with real wood veneer. Depending on the sound insulation requirements, the frame extension elements are fabricated with one or two heavy bitumen foils. Glass wool, FA 50 Carbolane, 45 kg/m³, is used for thermal insulation. They are fabricated with a circumferential spruce pine edge band. Special edge bands can be inset according to your requirements.

Downloads

[{"filename":"433180cf2e40b828800b5181ff7d8074.pdf","name":"Product description"},{"filename":"429385a4aadbc3fed4b95ddc827c8f6e.pdf","name":"Technical details"},{"filename":"adc87c87975f82ea3a1e047bb20bfd78.pdf","name":"Physical material properties of the applied materials"},{"filename":"26a6006bb4547ea9304093f6c7014ae9.pdf","name":"Test report, 43 dB, BIO 8"},{"filename":"391fb8b207edeb339b5e896fca452bff.pdf","name":"Test report, 46 dB, BIO 8"},{"filename":"68a326632b1b76e461bf77cbb34e92b9.pdf","name":"ECO certificate"}]

Product description

Services – your advantages at a glance

• Clear price structure: many services are already included
• Custom-made to your specifications
• Picked and labelled for delivery
• CNC edge machining on all sides to match the frame and threshold profile
• Additional CNC machining such as rebates, ventilation slots, surface grooves, cut-outs or round or segmental arches
• Special glued joints available on request fora optimum fastening
• Large selection of real wood veneers and material combinations
• No waste and no machine, labour or storage costs
